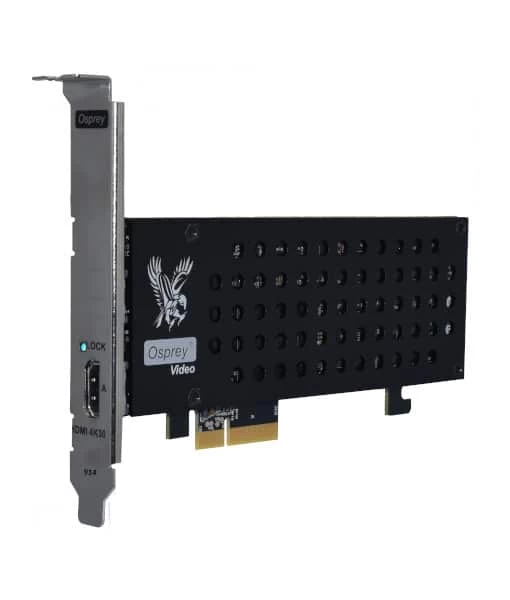

Osprey Raptor Series 914 PCIe Capture Card







Osprey Raptor Series 914 PCIe Capture Card

The Osprey Raptor Series 914 PCIe Capture Card features one HDMI connection rated at 4K30 (HDMI 1.4). The Input supports 8 Audio Channels (4 Stereo Channels).

SimulStream®, a standard feature on all SDI models, is an Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications

Features

• SimulStream
• Seamless adaption to input signal changes
• Cropping
• Custom loss of signal insertion
• Watermarking
• MediaLooks SDK support
• CC overlay
• VBI extraction
• CC extraction
• Automatic signal detection
• Image control (Procamp)
• De-interlacing
• Scaling
• Frame rate conversion
• Multiple cards per host computer
• Text overlay or system time and date
• Dual mono audio
• Unified driver for all Raptor cards
• Fanless design





Technical specifications

Computer Interface	PCI Express Gen2 x4
Connections	4K30 HDMI 1.4 (Full Size Type A)
Audio I/O	16 x Embedded Channels (8 Stereo)
Video Standards	SD Video Standards: 625i50 PAL, 525i59.94 NTSC480p, 576pHD Video Standards: 720p24, 25, 30, 50, 59.94, 601080p23.98, 24, 25, 29.97, 30, 50, 59.94, 601080psf23.98, 24, 25, 29.97, 301080i50, 59.94, 60 UHD Video Standards: UHD 2160p23.98, 24, 25, 29.97, 30 PC Video Standards: 1920×1200, 1600×1200, 1400×1050, 1200×1024, 1280×960, 1360×768, 1280×768, 1024×768, 800×600, 640×480
SDI Compliance	SMPTE 259/292/296/424/425 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Embedded 8 Channels (4 Stereo) per connection Television standard sample rate of 48 kHz at 24-bit.
SDI Color Precision	8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2
Multiple Rate Support	Auto-Detect SD/HD/3G-A
Power Consumption	4.4 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	4.8 oz / 138 g
