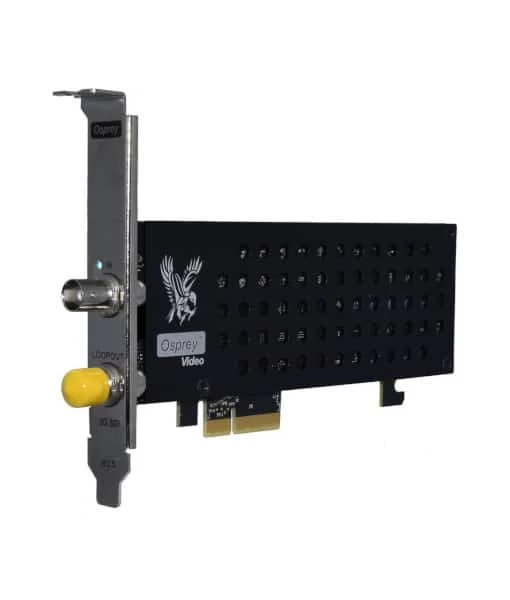

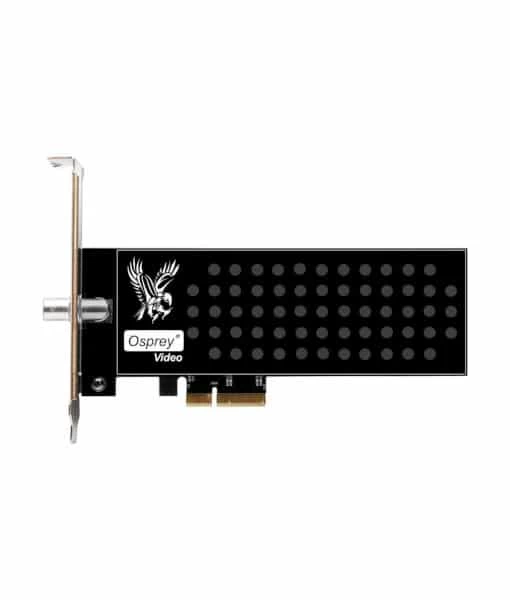

Osprey Raptor Series 915 PCIe Capture Card







Osprey Raptor Series 915 PCIe Capture Card

Capture and play back one channel of SDI video at up to 60 fps with the Raptor Series 915 PCIe Capture Card from Osprey. This capture card offers one SDI input, which is rated at 3 Gb/s, works with SD, HD, and 3G frame sizes, and supports 16 embedded audio channels (eight stereo channels). Additionally, the card provides one loopout channel. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.



Features

• Seamless adaption to input signal changes
• Cropping
• Custom loss of signal insertion
• Watermarking
• MediaLooks SDK support
• CC overlay
• VBI extraction
• CC extraction
• Automatic signal detection
• Image control (Procamp)
• De-interlacing
• Scaling
• Frame rate conversion
• Multiple cards per host computer
• Text overlay or system time and date
• Dual mono audio
• Unified driver for all Raptor cards
• Fanless design





Technical specifications

Computer Interface	PCI Express Gen2 x4
Connections	1 x 3 Gb/s SD/HD/3G-A Input (BNC) 1 x Loopout
Audio I/O	16 x Embedded Channels (8 Stereo)
Video Standards	3G/HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 720p 50, 59.94, 60SD: 525i 59.94 NTSC 625i 50 PAL
SDI Compliance	SMPTE 259/292/296/424/425 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Television Standard Sample Rate of 48 kHz at 24-Bit
SDI Color Precision	8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2
Multiple Rate Support	Auto-Detect SD/HD/3G-A
Power Consumption	4.7 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	4.3 oz / 123 g
