Name: Hete Deals op Trendy Osprey Raptor Series 924 PCIe Capture Card—Nu Beschikbaar bij Beveiligingscamera Winkel via Beveiligingcamera.com Breda Nederland.
SKU: OS-924
Price: 99.99 EUR
Availability: InStock

Aanbieding!

Oorspronkelijke prijs was: 376,00 €.Huidige prijs is: 99,99 €.

The Osprey Raptor Series 924 PCIe Capture Card features two HDMI connection rated at 4K30 (HDMI 1.4). The Inputs support 8 Audio Channels (4 Stereo Channels) each.

Key features

4-Lane PCIe Video Capture Card
2x 4K30 HDMI 1.4 (Full Size Type A)
8 Audio Channels (4 stereo) per channel
Full-Height Bracket Preinstalled
Half-Height Bracket Include

Artikelnummer: OS-924 Categorieën: Capture cards, HDMI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

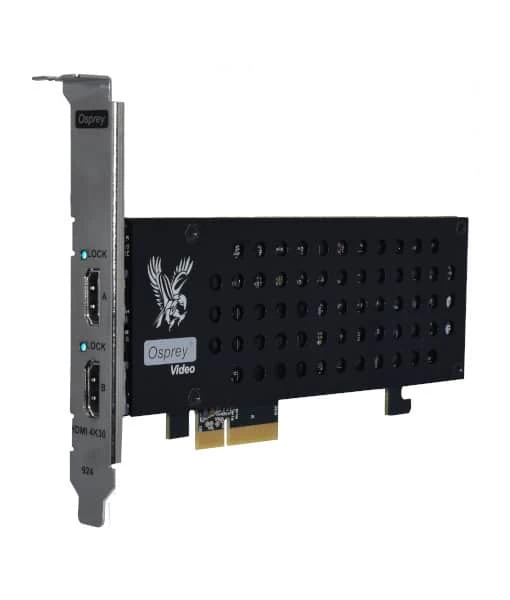

Osprey Raptor Series 924 PCIe Capture Card

Osprey Raptor 924 features two HDMI connections rated at 4K30 (HDMI 1.4). Each HDMI Input supports 8 Audio Channels (4 Stereo Channels) for a total of up to 16 combined Audio Channels between all inputs.

SimulStream®, a standard feature on all SDI models, is an Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications

Features

SimulStream
Seamless adaption to input signal changes
Cropping
Custom loss of signal insertion
Watermarking
MediaLooks SDK support
CC overlay
VBI extraction
CC extraction
Automatic signal detection
Image control (Procamp)
De-interlacing
Scaling
Frame rate conversion
Multiple cards per host computer
Text overlay or system time and date
Dual mono audio
Unified driver for all Raptor cards
Fanless design

Technical specifications

Computer Interface	PCI Express Gen2 x4
Connections	2x 4K30 HDMI 1.4 (Full Size Type A)
Audio I/O	16 x Embedded Channels (8 Stereo)
Video Standards	SD Video Standards: 625i50 PAL, 525i59.94 NTSC480p, 576pHD Video Standards: 720p24, 25, 30, 50, 59.94, 601080p23.98, 24, 25, 29.97, 30, 50, 59.94, 601080psf23.98, 24, 25, 29.97, 301080i50, 59.94, 60 UHD Video Standards: UHD 2160p23.98, 24, 25, 29.97, 30 PC Video Standards: 1920×1200, 1600×1200, 1400×1050, 1200×1024, 1280×960, 1360×768, 1280×768, 1024×768, 800×600, 640×480
SDI Compliance	SMPTE 259/292/296/424/425 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Embedded 8 Channels (4 Stereo) per connection Television standard sample rate of 48 kHz at 24-bit.
SDI Color Precision	8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2
Multiple Rate Support	Auto-Detect SD/HD/3G-A
Power Consumption	4.6 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	5.1 oz / 146 g
