Name: Het Ideale Geschenk: Prachtige Osprey Raptor Series 935 PCIe Capture Card Geschenken bij Beveiligingscamera Winkel.
SKU: OS-935
Price: 99.99 EUR
Availability: InStock

Aanbieding!

Oorspronkelijke prijs was: 370,00 €.Huidige prijs is: 99,99 €.

The Osprey Raptor Series 935 PCIe Capture Card can capture and play back up to three channels of SDI video at up to 60 fps. This capture card offers three SDI input, which is rated at 3 Gb/s, works with SD, HD, and 3G frame sizes, and supports 16 embedded audio channels (eight stereo channels). Additionally, the third SDI input can be configured as Loopout from the first. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.

Key features

4-Lane PCIe Video Capture Card
3 x 3 Gb/s SD/HD/3G SDI Input
3rd SDI Configurable as Loopout
BNC Interface
up to 60fps
Up to 16 Audio Channels per SDI Input
Full-Height Bracket Preinstalled
Half-Height Bracket Include

Artikelnummer: OS-935 Categorieën: Capture cards, SDI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

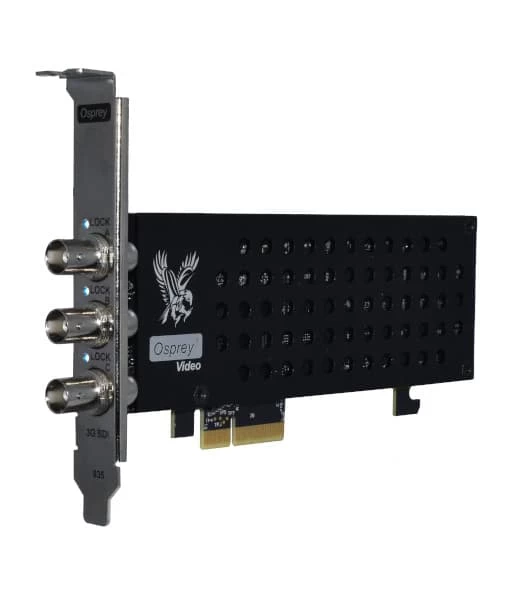

Osprey Raptor Series 935 PCIe Capture Card

Capture and play back up to three channels of SDI video at up to 60 fps with the Raptor Series 935 PCIe Capture Card from Osprey. This capture card offers three SDI inputs, which are rated at 3 Gb/s, work with SD, HD, and 3G frame sizes, and support 16 embedded audio channels (eight stereo channels) each. The third SDI channel can be configured as loopout from the first input. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.

Features

Seamless adaption to input signal changes
Cropping
Custom loss of signal insertion
Watermarking
MediaLooks SDK support
CC overlay
VBI extraction
CC extraction
Automatic signal detection
Image control (Procamp)
De-interlacing
Scaling
Frame rate conversion
Multiple cards per host computer
Text overlay or system time and date
Dual mono audio
Unified driver for all Raptor cards
Fanless design

Technical specifications

Computer Interface	PCI Express Gen2 x4
Connections	3 x 3 Gb/s SD/HD/3G-A Input (BNC) 3rd Input Configurable as Loopout from 1st Input
Audio I/O	16 x Embedded Channels (8 Stereo)
Video Standards	3G/HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 720p 50, 59.94, 60SD: 525i 59.94 NTSC 625i 50 PAL
SDI Compliance	SMPTE 259/292/296/424/425 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Television Standard Sample Rate of 48 kHz at 24-Bit
SDI Color Precision	8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2
Multiple Rate Support	Auto-Detect SD/HD/3G-A
Power Consumption	5.1 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	4.6 oz / 130 g
