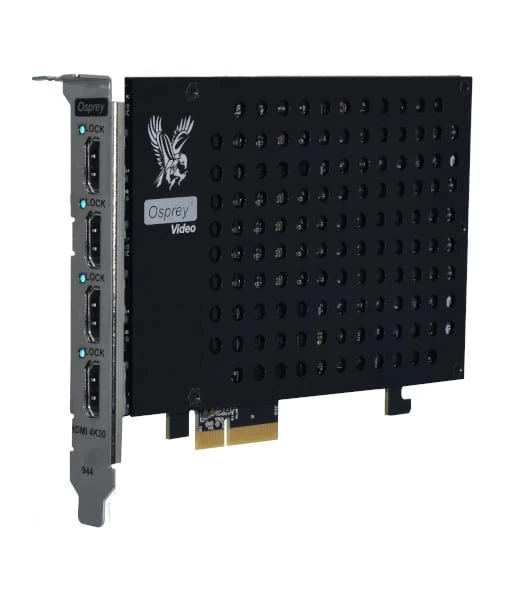

Osprey Raptor Series 944 PCIe Capture Card







Osprey Raptor Series 944 PCIe Capture Card

The Osprey Raptor 944 features four HDMI connections of which two links are rated at 4K30 (HDMI 1.4) and two links at 1080P60 (HDMI 1.3). Each HDMI Input supports 8 Audio Channels (4 Stereo Channels) for a total of up to 32 combined Audio Channels between all inputs.

SimulStream®, a standard feature on all SDI models, is an Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.



Features

• SimulStream
• Seamless adaption to input signal changes
• Cropping
• Custom loss of signal insertion
• Watermarking
• MediaLooks SDK support
• CC overlay
• VBI extraction
• CC extraction
• Automatic signal detection
• Image control (Procamp)
• De-interlacing
• Scaling
• Frame rate conversion
• Multiple cards per host computer
• Text overlay or system time and date
• Dual mono audio
• Unified driver for all Raptor cards
• Fanless design





Technical specifications

Computer Interface	PCI Express Gen2 x4
Connections	2x 4K30 HDMI 1.4 (Full Size Type A) 2 x 1080P60 HDMI 1.3 (Full Size Type A)
Audio I/O	16 x Embedded Channels (8 Stereo)
Video Standards	SD Video Standards: 625i50 PAL, 525i59.94 NTSC 480p, 576pHD Video Standards: 720p24, 25, 30, 50, 59.94, 601080p23.98, 24, 25, 29.97, 30, 50, 59.94, 601080psf23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 UHD Video Standards: UHD 2160p23.98, 24, 25, 29.97, 30 PC Video Standards: 1920×1200, 1600×1200, 1400×1050, 1200×1024, 1280×960, 1360×768, 1280×768, 1024×768, 800×600, 640×480
SDI Compliance	SMPTE 259/292/296/424/425 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Embedded 8 Channels (4 Stereo) per connection Television standard sample rate of 48 kHz at 24-bit.
SDI Color Precision	8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2
Multiple Rate Support	Auto-Detect SD/HD/3G-A
Power Consumption	4.8 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	6.4 oz / 182 g
