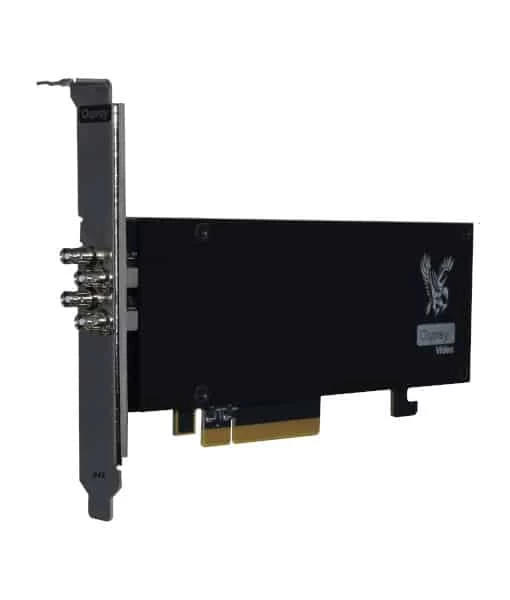

Osprey Raptor Series 945 PCIe Capture Card
Capture and play back up to four channels of SDI video at up to 60 fps with the Raptor Series 945 PCIe Capture Card from Osprey. This capture card offers four bi-directional SDI channels, which are rated at 3 Gb/s, and work with SD, HD, and 3G frame sizes. Each SDI input supports 16 embedded audio channels (eight stereo channels). Additionally, a genlock input allows for frame synchronization when the card is used in output mode.
Featuring SimulStream technology, this capture card allows you to produce multiple parallel live-stream output streams from each SDI input. Each output stream can be sent to a different destination, with independent settings for color space, cropping, scaling, closed caption, and overlays. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
Features
- SimulStream
- Seamless adaption to input signal changes
- Cropping
- Custom loss of signal insertion
- Watermarking
- MediaLooks SDK support
- CC overlay
- VBI extraction
- CC extraction
- Automatic signal detection
- Image control (Procamp)
- De-interlacing
- Scaling
- Frame rate conversion
- Multiple cards per host computer
- Text overlay or system time and date
- Dual mono audio
- Unified driver for all Raptor cards
- Fanless design
Technical specifications
| Computer Interface | PCI Express Gen2 x8 |
| Connections | 4 x Two-Way 3 Gb/s SD/HD/3G-A (Micro HD BNC) |
| Audio I/O | 16 x Embedded Channels (8 Stereo) |
| Video Standards | 3G/HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 720p 50, 59.94, 60SD: 525i 59.94 NTSC 625i 50 PAL |
| SDI Compliance | SMPTE 259/292/296/424/425/2081/2082, ITU-R BT.656 and ITU-R BT.601 3G-SDI Level A Only |
| SDI Metadata Support | CEA-608, CEA-708 for Closed Captioning |
| Audio Sampling | Television Standard Sample Rate of 48 kHz at 24-Bit |
| SDI Color Precision | 8-/10-/12-Bit RGB 4:4:4 YUV 4:4:4 and 4:2:2 |
| Multiple Rate Support | Auto-Detect SD/HD/3G-A |
| Power Consumption | 8.1 W Approx. |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Weight | 4.7 oz / 132 g |
Downloads
Datasheet
Raptor 3G-SDI Capture Cards
