Osprey Talon G1 H.264 Encoder





How does it works?

Since the encoding hardware is built into the G1, no extra processing power on the part of a computer is required. 2 simultaneous video signals can be streamed simultaneously to two different destinations, while a single video signal can be streamed to up to 3 discrete destinations, each with its own settings. For more information on the operating modes, see the features section below.

Features

• Hardware H.264 Encoding
• HDMI, SDI, & Composite Video Inputs
• Streaming and Archiving Solution
• Ethernet Control
• 1 Source to 3 Simultaneous Streams
• 2 Sources to 2 Simultaneous Streams
• Analog Stereo Audio Input
• Mounting Brackets Included
• Power Supply Included

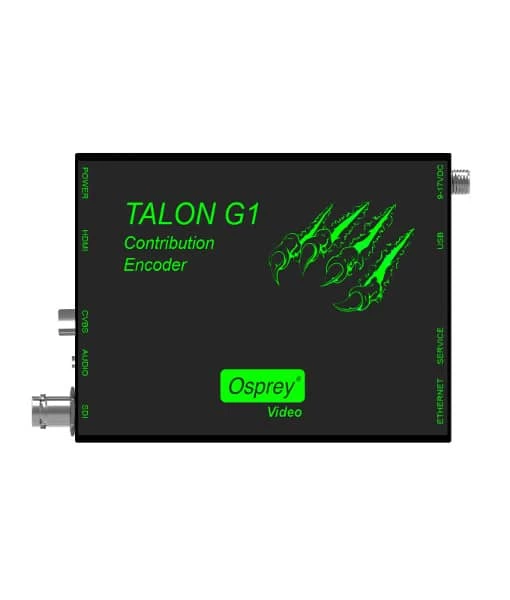

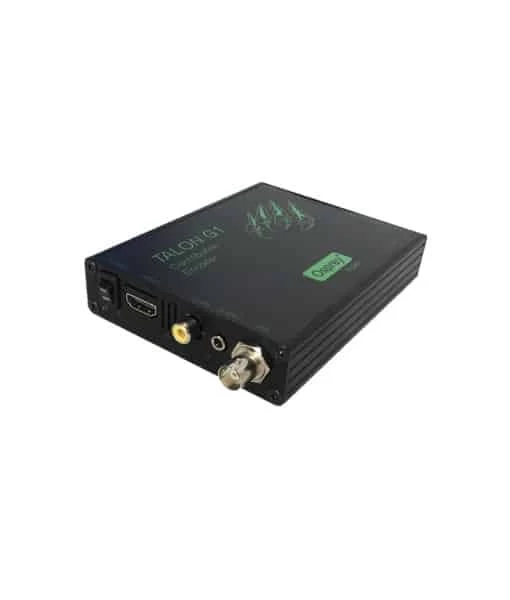

Osprey Talon G1 H.264 Encoder



I/O	Ethernet: 1x RJ-45 gigabit ethernetVideo: 1x Composite RCA input 1x SDI BNC input 1x HDMI type AAudio: 1x 3.5mm unbalanced stereo inputUSB: 1x USB 2.0 type A
Resolution Support	1080p23.98/24/15/29.97/30/50/59.94/60 1080i50/59.94/60 720p23.98/24/25/29.97/50/59.94/60 576p25/50 NTSC PAL
Encoding	Video: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File Audio: AAC-LC & AAC-HE (32 to 320 kbps)
Power Consumption	6 W
Dimensions	3.7 x 4.7 x 1″ / 93 x 120 x 25
Weight	0.6 lb / 260 g
