Features
- Hardware H.264 Encoding
- HDMI, SDI, & Composite Video Inputs
- Streaming and Archiving Solution
- Ethernet Control
- 1 Source to 3 Simultaneous Streams
- 2 Sources to 2 Simultaneous Streams
- Analog Stereo Audio Input
- Mounting Brackets Included
- Power Supply Included

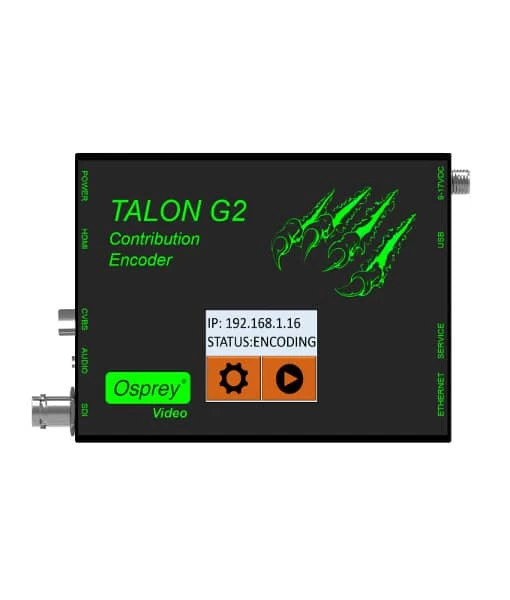

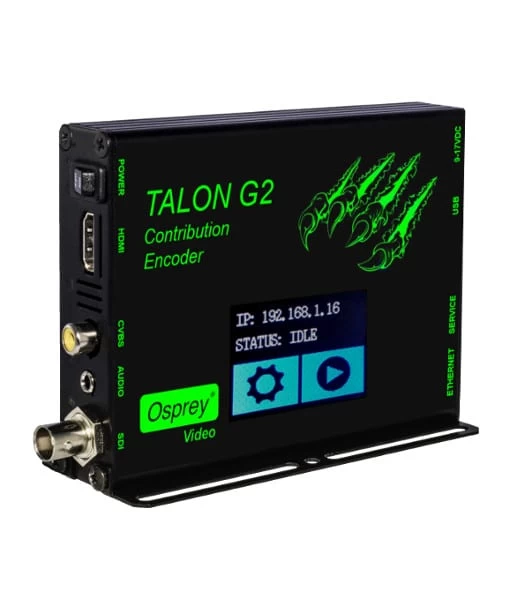

Osprey Talon G2 H.264 Encoder
| Video Input | • 3G SMPTE 424M
• HD SMPTE 292M • SD SMPTE 259M • HDMI 1080P/60 • Composite (CVBS) |
| Video Connector | • Composite (RCA x 1)
• SDI (BNC x 1) • HDMI |
| Audio Input | • Unbalanced stereo
• Embedded SDI (1 stereo pair) • Embedded HDMI (1 stereo pair) |
| Audio Connector | Unbalanced stereo (3.5mm x 1) |
| Video Modes | • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
• 1080i 50, 59.94, 60 • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60 • 720 x 480 29.97, 30/i (NTSC) • 720 x 576 25/i (PAL) • 720 x 576 25, 50/p |
| Encoding | • Video Encoding: H.264 RTMP, RTP, MPEG-2 TS
UDP, .TS File • Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps) |
| Closed Caption: | Closed Captioning (EIA-608 & EIA-708) Type 1
ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard* |
| LED indicators | Power, Encoding, Signal Lock for SDI, HDMI, Composite |
| In the Box | • Talon G2 Encoder
• International Power Supply • Mounting Brackets |
Downloads
Datasheet
Osprey Talon Encoders
