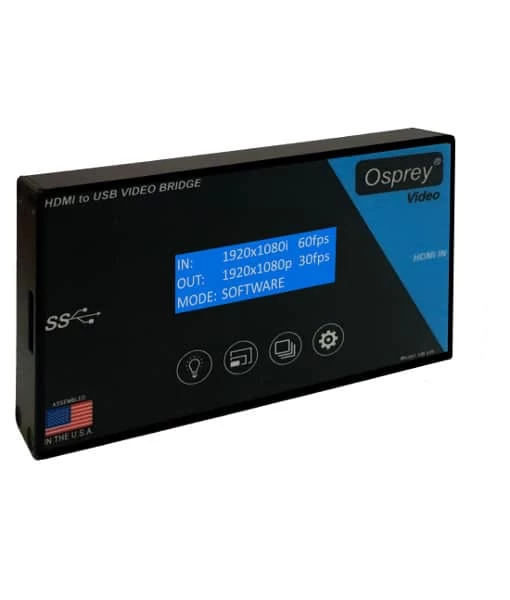

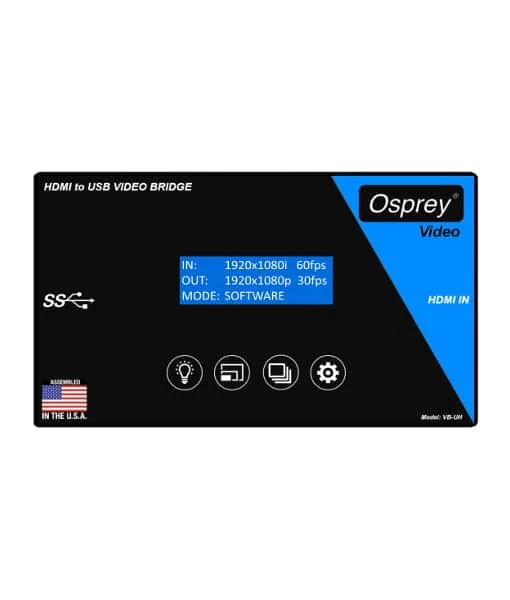

Osprey VB-UH HDMI To USB Video Capture





How does it works?

In Software mode, all available frame rates and resolutions are passed to the capture software. For greater user control, the frame rate and resolution can be pre-selected in Manual mode. Compact in size and powered directly via USB, the VB-UH USB Video Bridge is compatible with Windows, Mac OSX, and Linux operating systems, and is UVC-compliant.



Features

• Uncompressed Video & Audio Capture
• HDMI Input / USB 3.0 Output
• Up to 1080p/60 Video
• LCD Screen Displays I/O, FPS & Mode
• Plug-and-Play Install, No Driver Needed
• Scaling and Frame Rate Conversion
• De-Interlacing
• Powered via USB Port
• Software & Manual Control Modes
• Windows, macOS, & Linux Support





Osprey VB-UH HDMI to USB Video Capture



Video Formats	HDMI: 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i: 50/59.94/60 1280 x 720p: 25/30/50/59.94/60 720 x 480p: 60 720 x 576p: 50 576i: 50 PAL 480i: 60 NTSC
Video Formats Out (YUV 422):	Frame Rates: 24/25/30/50/60 1920 x 1080 1680 x 1050 1440 x 900 1360 x 768 1280 x 1024 1280 x 800 1280 x 768 1280 x 720 1024 x 768 1024 x 576 960 x 540 856 x 480 800 x 600 768 x 576 720 x 576 720 x 480 640 x 480 640 x 360
Video Input	HDMI 1.3a RGB 4:4:4
Audio Input	Embedded Audio: 2-channel HDMI Sample Rate: 48 kHz
Interfaces	1 x full-size HDMI 1 x Micro-B USB 3.0, UVC/UAC-compliant
Power	5 V USB-powered, 4.5 W maximum
Dimensions	4 x 2.4 x 0.67″ (103 x 61 x 17 mm)
Weight	0.25 lb (0.11 kg)
