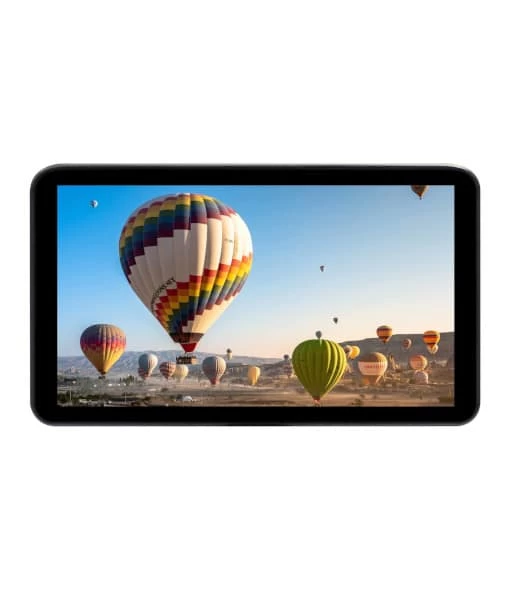

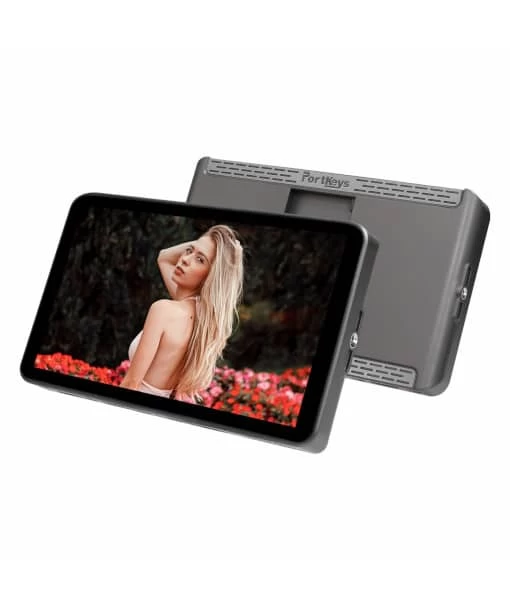

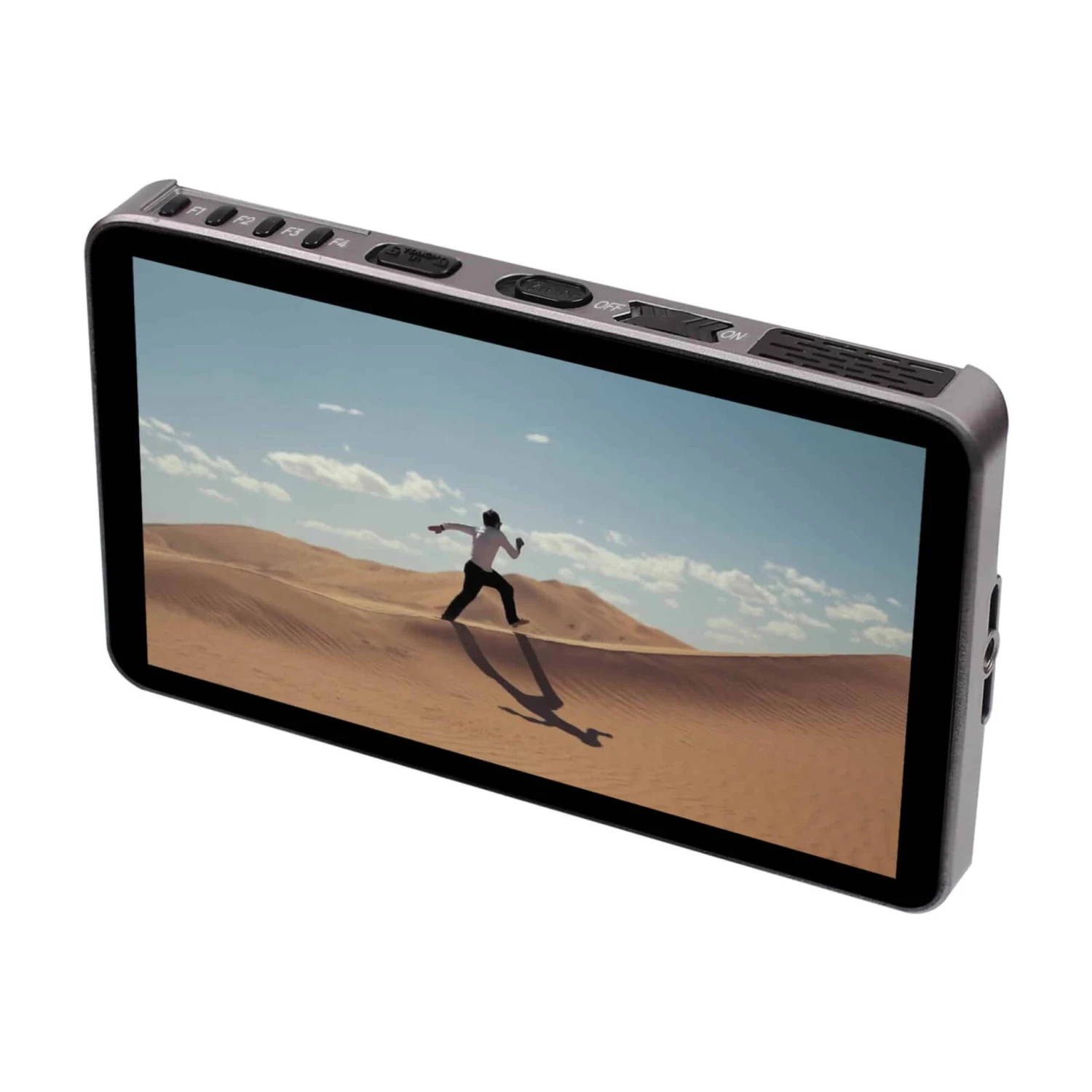

PORTKEYS LH7 7″ Touchscreen Monitor

The PortKeys LH7H 7″ is a bright, 7″ on-camera touchscreen display that offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. It is powered using the built-in L-series battery plate with a separately available battery, or it can be powered using an optional DC power supply. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.

KEY FEATURES

• 7″ HDMI 1920 x 1080 Touchscreen
• Up to DCI 4K24/UHD 4K30 Video Input
• 1000 cd/m² Brightness, HDR Preview
• HDMI Input & Output, Headphone Jack
• Anamorphic Correction via HDMI Output
• 3D LUT Support, L-Series Battery Plate

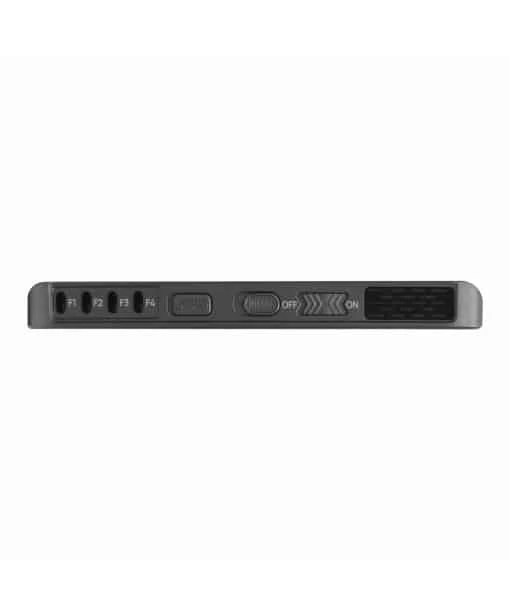

• Control Record, Shutter, Focus & More
• HDMI Cable & Screen Protector Included

SPECIFICATIONS PORTKEYS LH7H 7″

Display
Panel Type	LCD
Display Size	7.0″ / 17.8 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 170° (85/85) Vertical: 170° (85/85)
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	1000:1
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	314 ppi
Image Controls	Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra 3D LUT support with custom LUTs via USB Peaking False color Luma Waveform Real-time eye focus Anamorphic de-squeeze Anamorphic lens calibration Frame guides, crosshairs, grids Color temperature Brightness Sharpness Cropping Check field Zebra Luma histogram Custom RGB Audio meters HDR/HLG support

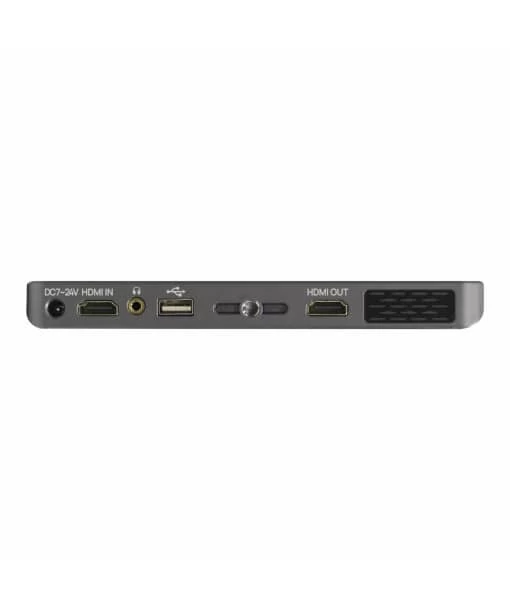

Inputs / Outputs
Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (24 VDC) Input 1x USB-A (2 A / 5 VDC) Input
Other I/O	1x USB-A (Firmware), (LUT Upload) [Shared with USB-A Power Input]
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support
Video Format	HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50

Power
DC Input Power	7 to 24 VDC

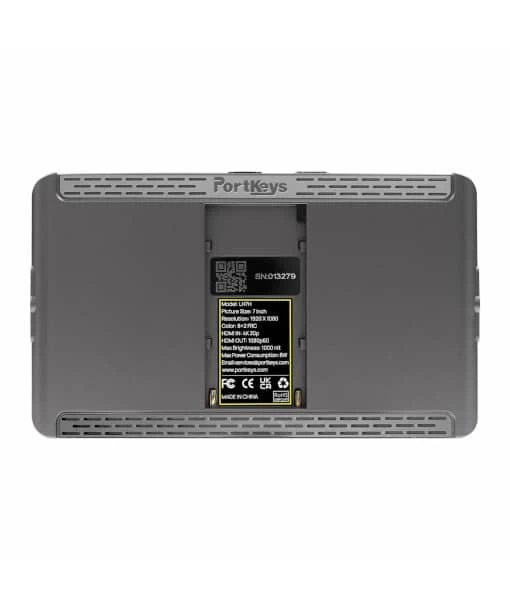

Battery Type	1x L-Series
Power Consumption	8 W

Mounting

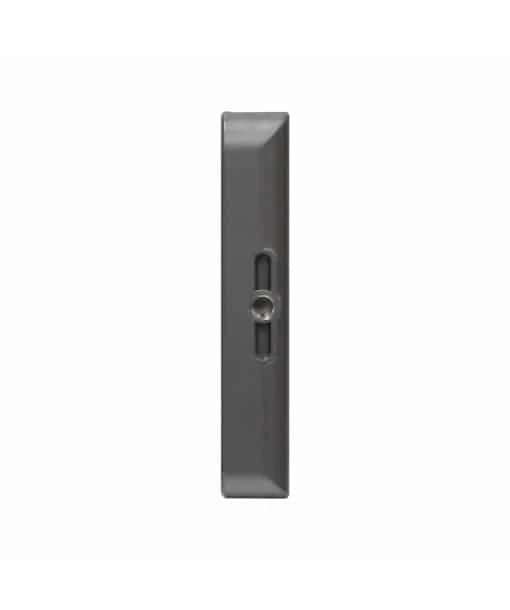

Mounting	2x 1/4″-20 Female

General
Material of Construction	Plastic
Dimensions	6.9 x 4.1 x 0.7″ / 176.2 x 103.8 x 18.4 mm
Weight	8.6 oz / 245 g



INCLUDED BY DEFAULT

• Portkeys LH7H 7 inch monitor met touchscreen
• HDMI-cable
