PORTKEYS PT5 II 5″ 4K HDMI Touchscreen Monitor With 3D LUT





PORTKEYS PT5 II 5″ 4K HDMI Touchscreen Monitor with 3D LUT

The PT5 II 5″ 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5″ touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.

KEY FEATURES

• 5″ 1920 x 1080 Touchscreen Display
• 4K HDMI I/O, 3D LUT Import via USB Port
• 500 cd/m² Bright/1000:1 Contrast Ratio

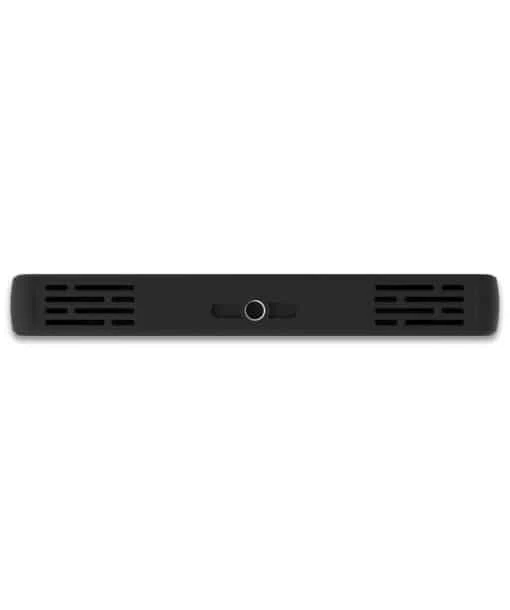

• Updated with Heat Vents for Cooling
• Focus Peaking, RGB & Luma Waveforms
• False Color, Histogram & Audio Metering
• 3.5mm Headphone Jack, On/Off Switch
• DC Input, USB Type-A Output Port

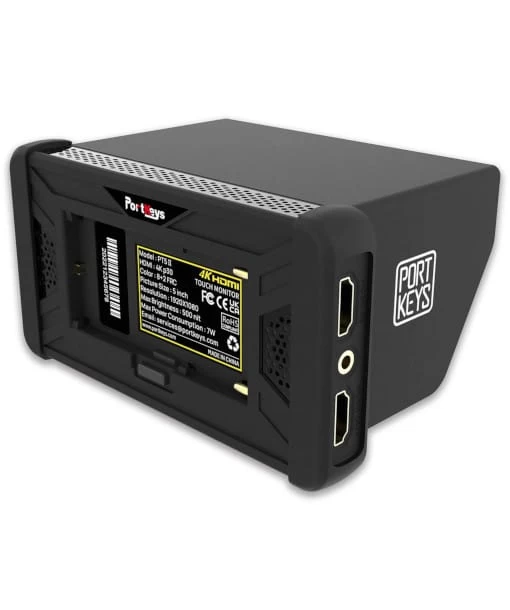

• Sunshade & Tilting Shoe Bracket
• Optional L-Series & LP-E6 Plates

SPECIFICATIONS PORTKEYS PT5 II

Display
Panel Type	IPS-Type LCD
Display Size	5.0″ / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	Yes
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1000:1
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility	No
Pixels Per Inch (ppi)	441 ppi
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Video I/O	1x HDMI Input 1x HDMI Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (24 VDC) Input
Other I/O	1x USB-A Input/Output
Media/Memory Card Slot	No
Wi-Fi	No

Format Support
Video Format	HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50

Power
DC Input Power	7 to 24 VDC
Battery Type	1x LP-E6 or L-Series
Power Consumption	7 W

General
Material of Construction	Plastic
Dimensions	5.4 x 2.8 x 0.7″ / 136 x 72 x 17 mm
Weight	4.6 oz / 130 g



INCLUDED BY DEFAULT

• 1x Portkeys PT5 II 5″ 4K HDMI Touchscreen Montitor with 3D LUT
• Shoe mount
• Sunshade
• Carrying Case
