Procab – BSD560F/10 – RJ45 CAT6 F/UTP Kabel

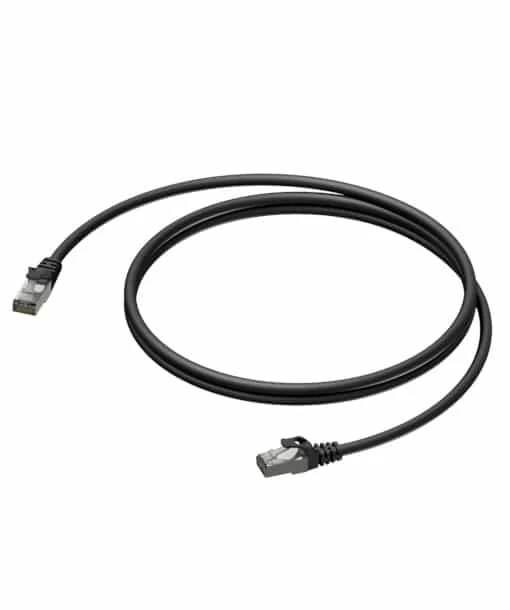

Procab – BSD560F 10 meter – RJ45 CAT6 F/UTP kabel

The Procab BSD560F is a basic series CAT6 F/UTP networking cable, offering reliable interconnections in a wide variety of applications, ranging from general purpose office computer systems to digital AV network systems. Both ends are terminated by male RJ45 connectors with gold plated contacts.The conductor section consists of 4 pair solid 26 AWG conductors which guarantees an optimal signal transmission while the shielding consisting of an overall aluminum foil offers a high immunity to noise and interference caused by external devices. The low-smoke & halogen free jacket material allows usage in installations in public and other demanding buildings. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit. Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols

KEY FEATURES PROCAB – BSD560F/10

• Flexible PVC jacket
• 26 AWG stranded conductors
• LSHF jacket
• Al-foil shielding
• 5.9 mm (Ø) outer diameter
• Oxygen free copper
• Wired according to ANSI/TIA/EIA 568B (straight)

SPECIFICATIONS PROCAB – BSD560F/10

Product Features
Application	AV & IT
Series	Classic Series
Physical characteristics
Inner conductor	Insulation	Material	HDPE 0.90 mm (Ø)
		Colours	Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
	Shielding	Aluminium foil	Al-mylar, 100% coverage – 25% Overlap
Outer jacket	Material		LSHF 5.9 mm (Ø)
	Colours		Black
Type of cable			F/UTP CAT6 Networking cable
Inner conductor	Material		BC 1 x 0.42 mm (Ø) (OFC)
	Section		0.14 mm²
	American Wire Gauge		26 AWG
	Number of conductors		8 (4 pairs)
	Conductor twisting		Lay length ≤ 30 mm
Connection type			RJ45 male to RJ45 male
Standards and regulations
RoHS2 compliant			According EU Directive 2011/65/EU
Reach compliant			According EC 1907/2006
Flammability test			According IEC 60332-1
Indoor / outdoor			Indoor
Circuit integrity			n/a
Smoke emissions			According IEC 61034
Zero halogen compounds			According EN 50267-2-1
			IEC 60754
Cabling standard			ANSI TIA-EIA 568B
Mechanical characteristics
Temperature range		Fixed installation	– 20 °C till + 75 °C
		Mobile installation	– 15 °C till + 60 °C
Bending radius		Fixed installation	4 x outer diameter
		Mobile installation	6 x outer diameter
Electrical characteristics
Max. conductor		DC resistance	130 (Ω / Km)
		DC resistance unbalanced	5 %
Dielectric strength			1.5 (KV / 1 min. DC)
Max. Delay / Skew			45 (ns / 100 m)
Rated voltage			72 V
Nom. Velocity of propagation			65 %
Characteristic impedance			100 Ω ± 10 Ω
Nom. mutual capacitance			≤ 5.6 (nF / 100 m)
Pair to ground capacitance unbalance			≤ 330 (nF / 100 m)
