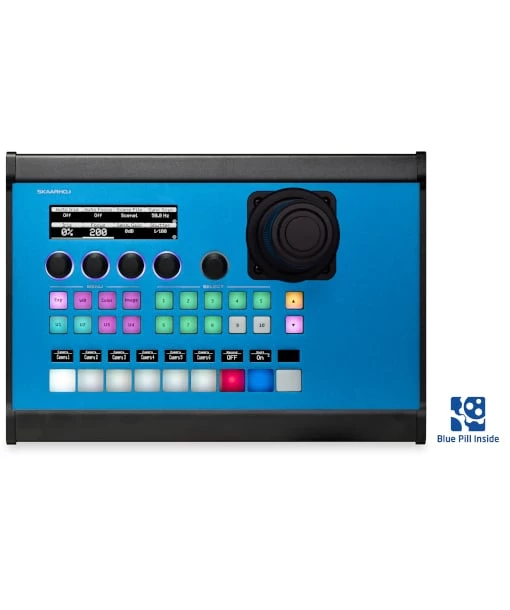

PTZ Pro W/Hall Effect Joystick Option And Blue Pill Inside

PTZ Pro w/Hall Effect Joystick option and Blue Pill Inside is a full featured PTZ controller for robotic cameras. Together with PTZ Fly this is our most popular controller. With dedicated buttons and knobs for all settings and actions, it’s easy and quick to use. You will enjoy all the same benefits as found on PTZ Fly while having a larger hand rest and faster, direct access.

This product comes with Blue Pill Inside.
Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.

Outstanding differences from previous or similar versions
Blue Pill Inside added

KEY FEATURES

SPECIFICATIONS SKAARHOJ PTZ PRO

Model	PTZ-PRO-J-V2B
Number of Supported Cameras	10 Channels
Supported Control Protocols	IP VISCA
Control Interface	1 x RJ45 (IP Control, VISCA) Output
Other I/O	1 x USB Micro-B (USB 3.1 / USB 3.2 Gen 1) Input
Controls	1 x Pan/Tilt Joystick 1 x Focus Knob 4 x Multifunction Knobs 10 x Multifunction, Camera Selection Buttons 10 x Multifunction Buttons 8 x Programmable Buttons
Presets	10 via IP, VISCA
Touchscreen	No
PoE support	PoE 802.3af
Power Connectors	1x JEITA
DC input power	12 VDC
Dimensions	25.7×17.8×13.2cm
Weight	1.2kg

INCLUDED BY DEFAULT

• PTZ Pro w/Blue Pill Inside
• 12V/1.25A power supply
