PTZOptics IP Joystick Controller Gen4

PTZOptics IP Joystick Controller Gen4

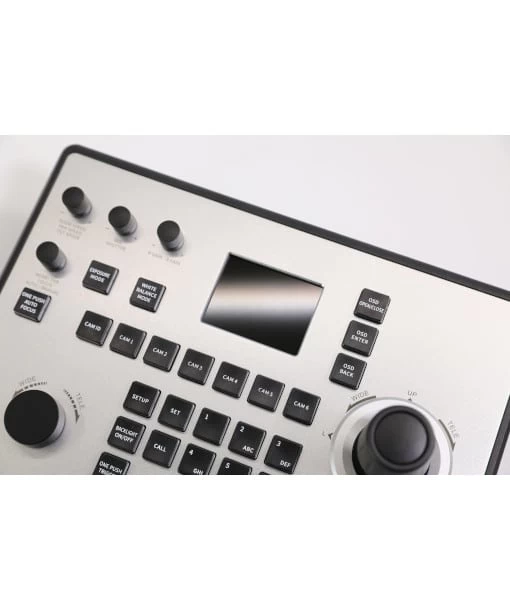

The PTZOptics PT-JOY-G4 is designed to provide in depth control of the PTZOptics and HuddleCamHD line of cameras for use in production environments and more. With the ability to support either IP or Serial control from a single controller, the PT-JOY-G4 presents itself as a flexible control solution.

KEY FEATURES

• Durable metal housing
• VISCA over IP & Serial control
• PTZOptics Camera On Screen Display control
• Full Pan / Tilt / Zoom camera control
• P/T/Z Speed adjustment on the fly
• Direct exposure & white balance control
• 255 total cameras via network
• 255 camera presets, 9 Quick presets

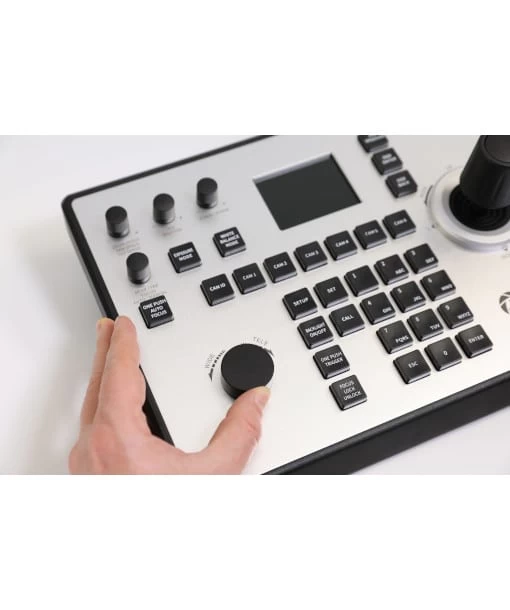

• Fine tune zoom control knob
• Fine tune focus control knob
• PTZOptics Focus lock & unlock
• Large LCD screen with controller status
• Import / Export settings via network
• 2-Year warranty

SPECIFICATIONS

Model	PT-JOY-G4-C
Connections	RS-232, RS-485, RS-422, RJ-45
Max Cameras	255 cameras via network 7 cameras via serial VISCA
Recommended Max Distance	RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m)
Baud rate	1200 ~ 19200 bps
Power	6W (12VDC) / PoE (802.3af)
Working Temp	14° F ~ 122° F (-10° C ~ +50° C)
Working Humidity	10% ~ 90% (non-condensation)
Weight	4.45 lbs (2.02 kg)
Dimensions (in.)	11.938 W x 9.25 D x 4.25 H
Dimensions (mm.)	303.23 W x 234.95 D x 107.95 H

INCLUDED BY DEFAULT

• PT-JOY-G4 Joystick Controller
• 12V 2A DC International Power Supply
• RS-232C cable 8ft (2.4m)
• PT-JOY-G4 Quick Start Guide
