PTZOptics Move 4K 12x Optical Zoom



PTZOptics Move 4K 12x Optical Zoom

The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with resolutions up to 4K60fps (1080p 60fps over 3G-SDI). In addition, this series includes a wide varietey of outputs such as USB, HDMI, SDI, and NDI®|HX.

The PT12X-4K-GY-G3 comes with a 12X optical zoom lens and a 72.5° horizontal field of view. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum.

The Move 4K series is compatible with a wide variety of production software, including vMix, OBS, Wirecast and many more.

KEY FEATURES

SPECIFICATIONS PTZOptics Move 4K 12x Optical Zoom

Image Sensor & Lens	Video Sensor	12x: 1/2.5 inch, UHD CMOS sensor, effective pixels: 8.51
	Resolution and Frame Rate	HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
		SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
	Digital Zoom	Off (3840×2160), 2X (1920×1080), 3X (1280×720), 4X (960×540), 8X (480×270), 16X (256×144)
	Field of View	12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide
	Min. Lux	0.5 Lux @ (F1.8, AGC ON)
	Shutter	1/30s ~ 1/10000s
Pan/Tilt Movement	Pan Speed	1.7° ~ 100°/s
	Tilt Movement	+90° to -30
	Tilt Speed	1.7° ~ 69.9°
	Presets	255 Presets
	Video Tracking	Supported
	Image Flip, Mirror and Freeze	Supported
Power Options	Power Supply	DC 12V / PoE+ (802.3at)
	Input Power	18W (Max)
Physical Specifications	Material	Aluminum, Plastic
	Color	White and Gray
	Dimensions (W x D x H)	5.57 W x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
	Weight	3.25 lbs (1.47 kg)
	Working Environment	Indoor
	Operating Temperature	14°F ~ 104°F (-10°C to 40°C)
	Storage Temperature	-40°F ~ 140°F (-40°C to 60°C)

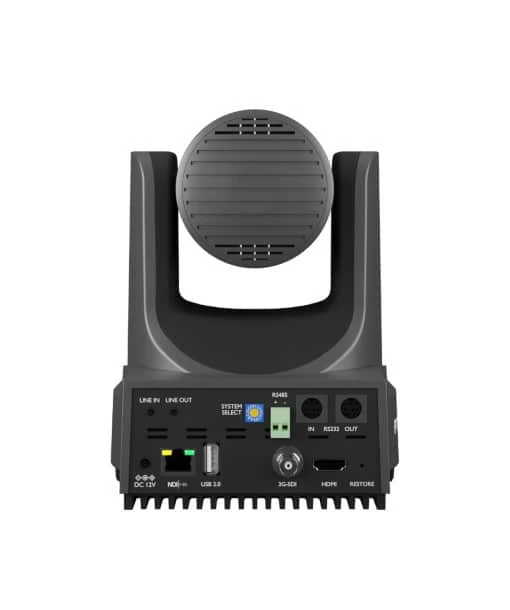

Rear Board Connectors	HD Video Output	1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
		1x HDMI: version 2.0
		1x USB 2.0: type A
		1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
	Audio Interface	1x 3.5mm Line level Input
	Communication Interface	1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
		1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
		1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
	Network Interface	RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
	Power Jack	JEITA type (DC IN 12V)

INCLUDED BY DEFAULT

• Camera
• AC Power Supply
• USB A-A Cable
• RS232 Cable
• Quick Start Guide
• IR Remote
• 2 AA Batteries
