PTZOptics Move SE 30X Optical Zoom

The PTZOptics Move SE offers built-in auto-tracking at resolutions up to 1080p at 60fps. Available outputs include SRT, RTSP, RTMP, SDI, HDMI, USB – plus NDI®|HX – for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.

The PT30X-SE-WH-G3 comes with a 30X optical zoom lens and a 60.7° horizontal field of view. The advanced SONY CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum.

KEY FEATURES

SPECIFICATIONS PTZOptics Move SE 30x Optical Zoom

age Sensor & Lens	Video Sensor	1/2.8’’, SONY CMOS, Effective Pixel: 2.07M
	Resolution and Frame Rate	1080p-60/50/30/25/59.94/29.97, 720p-60/50
	Digital Zoom	Off (1920×1080), 2X (960×540), 3X (640×360), 4X, (480×270), 8X (240×135), 16X (128×72)
	Min. Lux	0.5 Lux @ (F1.8, AGC ON)
	Shutter	1/30s ~ 1/10000s
	Lens	30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8
	White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
	Backlight Compensation	Supported
	Digital Noise Reduction	2D & 3D Digital Noise Reductions
	Field of View	30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide)
	Display Field of View	30x: 69.6°
Pan/Tilt Movement	Pan Movement	±170°
	Pan Speed	1.7° ~ 100°/s
	Tilt Movement	+90° to -30
	Tilt Speed	1.7° ~ 69.9°
	Image Flip, Mirror and Freeze	Supported
	Presets	255 Presets
	Preset Accuracy	0.1°
Power Options	Power Supply	DC 12V / PoE (802.3af)
	Input Power	2A (Max)
Physical Specifications	Material	Aluminum, Plastic
	Color	White and Gray
	Dimensions (W x D x H)	5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up) 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m
	Weight	3.2 lbs. (1.445 kg)
	Working Environment	Indoor
	Operating Temperature	14°F ~ 104°F (-10°C to 40°C)
	Storage Temperature	-40°F ~ 140°F (-40°C to 60°C)

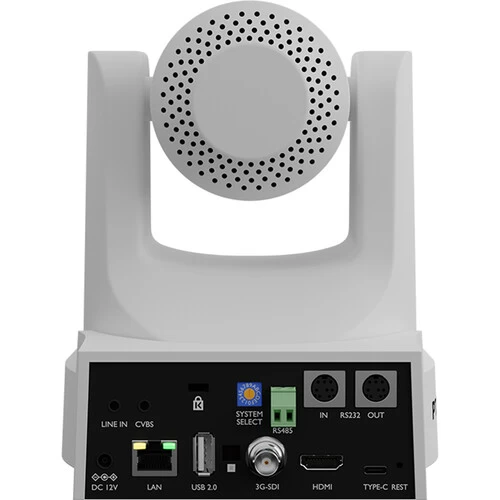

Rear Board Connectors	HD Video Output	1x RJ45: 10/100 Adaptive Ethernet Port
		1x HDMI: version 1.3
		1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard
		1x USB 3.0 Type C
	Audio Interface	1x 3.5mm Line level Input
	Communication Interface	1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
		1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
		1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
	IR	4x IR Addresses, Max distance 30ft / 9m
	Power Jack	JEITA type (DC IN 12V)
	Network Interface	RJ45: 10/100M Adaptive Ethernet Port, supports PoE (802.3af)

INCLUDED BY DEFAULT

• Camera
• AC Power Supply
• USB A-A Cable
• RS232 Cable
• Quick Start Guide
• IR Remote
• 2 AA Batteries
