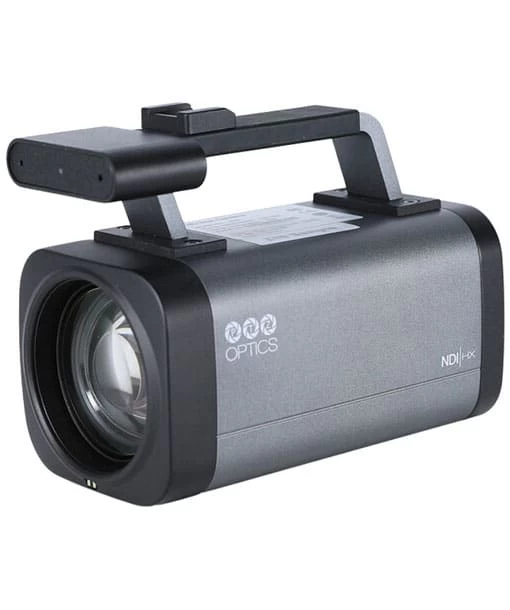

PTZOptics Studio Pro All-in-One Live Streaming Camera With 12x Optical Zoom

PTZOptics Studio Pro All-in-One Live Streaming Camera with 12x Optical Zoom

Designed for content creation, live streaming, and videoconferencing, the Studio Pro All-in-One Live Streaming Camera with 12x Optical Zoom from PTZOptics captures and streams HD video up to 1080p60 via IP and it outputs locally via USB-C 3.1 Gen 1 and HDMI. It also supports switchable portrait and landscape modes, so it’s compatible with a variety of streaming services like Instagram. Its advanced quick focus function allows you to maintain a sharp image, while also creating a pleasing bokeh effect.

Other features include a built-in noise-cancelling microphone array, a microphone input, NDI|HX, SRT/RTMP/RTSP streaming support, 12x optical zoom, 16x digital zoom, and a wide 72.5° field of view. An LED panel is included to illuminate your scene, and it can mount on top of the camera, using the integrated shoe mount on the top handle. You can remotely control the camera operation, using the included IR remote control.

Designed for Content Creation

The Studio Pro is an all-in-one content creation and livestreaming solution, featuring 12x optical zoom, up to 1080p60 video capture, a 72.5° field of view, and a portrait and landscape toggle switch, empowering users to connect with their audiences however they watch.

Fast Autofocus

The camera’s time-of-flight sensor gives the camera quick focus capabilities, while its advanced focus settings allow users to achieve a bokeh effect for a more unique and creative visual experience.

Multiple Output Options

With simultaneous HDMI, USB-C, and IP output capabilities, the Studio Pro can integrate into even the most complex setups—much more than your typical DSLR can do. The camera comes native with NDI|HX, so no additional license is needed to access your camera over the network.

All-in-One Solution

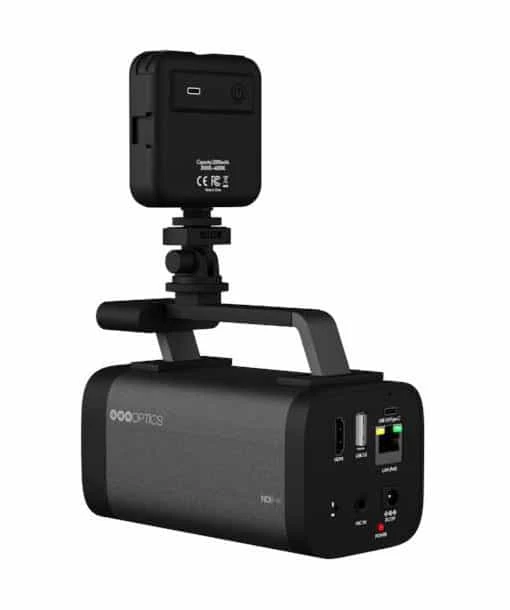

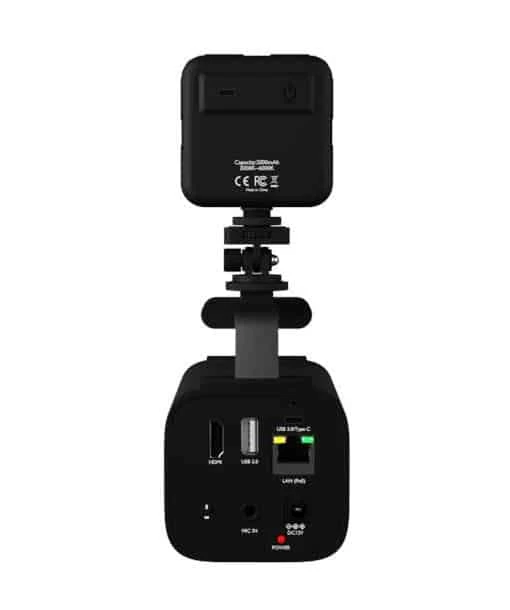

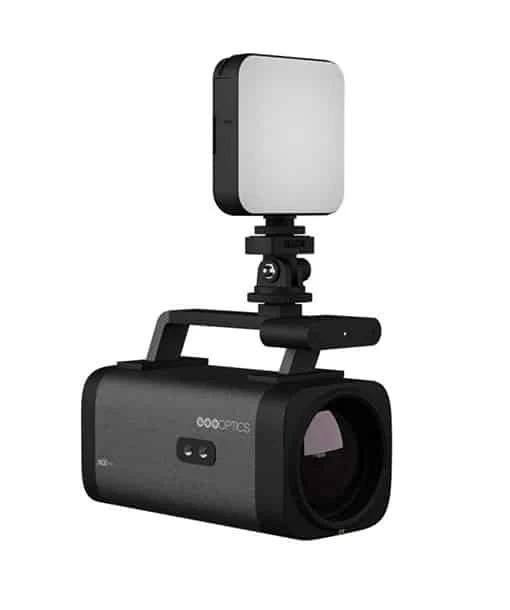

The Studio Pro includes an IR remote and a USB-powered premium lighting solution that offers 3000 to 6000K temperatures—soft-white all the way up to crisp daylight. It also features a noise canceling microphone array, as well as a cold shoe.

Accessories

The camera features a built-in shoe mount and a 1/4″-20 tripod mounting thread.

Power Options

For flexible deployment, the Studio Pro is PoE-capable and can also be powered by USB or standard 12 VDC power supply. It also features a USB-A output to power an accessory.

KEY FEATURES

• For Live Streaming & Video Conferencing
• Up to 1080p60 Video Capture
• USB-C & HDMI Output, IP/NDI|HX Streaming
• 12x Optical Zoom, 16x Digital Zoom
• Switchable Portrait & Landscape Modes
• 72.5° Field of View
• Built-In Noise Canceling Mic, Mic Input
• LED Panel Light, IR Remote Included
• 1/4″-20 Mounting Thread, Shoe Mount
• PoE, 5V USB, and 12 VDC Power Options

SPECIFICATIONS

Camera
Video Sensor	1/2.8 inch, CMOS Sensor. Effective pixels: 2.07M
Resolution	1080P@60 / 50 / 30, 1080I@60 / 50, 720P@60 / 50
Min. Illumination	0.5 Lux
Modes	Supports Portrait & Landscape Mode
Image Flip	Horizontal & Vertical Flip /Image Freeze Supported
Lens
Zoom	12X Zoom optical zoom (16X digital zoom)
FOV	Horizontal Field of View 6.9⁰ ~ 72.5⁰ Vertical Field of View 3.9⁰ ~ 44.8⁰
Focus	Precise Focus

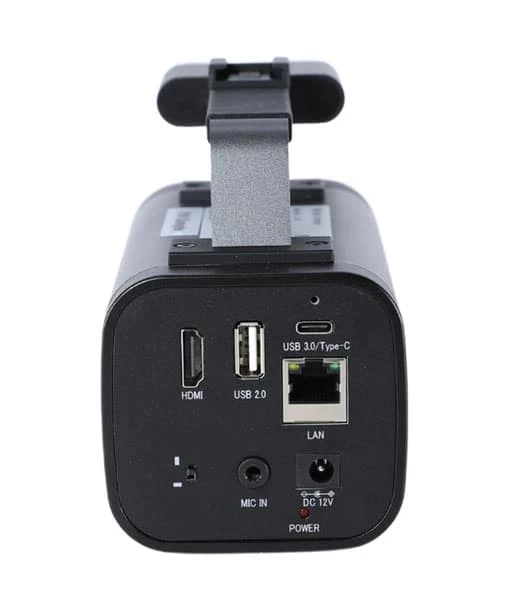

Inputs/Outputs
USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output
Video I/O	1 x USB-A (Power Only) Female Output
Audio I/O	1 x HDMI Output
Microphone	Built-in mic with noise canceling
Protocols	TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI®|HX, Multicast, SRT
Power
DC Input Power	12 VDC
Power Consumption	6 W
General
Operating Temperature	0 to 40°C
Mounting	Top: 1 x Shoe Mount Bottom: 1 x 1/4″-20 Thread
Dimensions	147 x 113 x 77 mm
Weight	699 g
Light	Premium LED light

INCLUDED BY DEFAULT

• PTZOptics Studio Pro All-in-One Live Streaming Camera with 12x Optical Zoom
• Power Supply
• LED Panel
• IR Remote
• 3 x AAA Battery
• USB-A to USB-C Locking Cable
