PTZOptics SuperJoy IP & Serial PTZ Camera Controller

PTZOptics SuperJoy IP & Serial PTZ Camera Controller

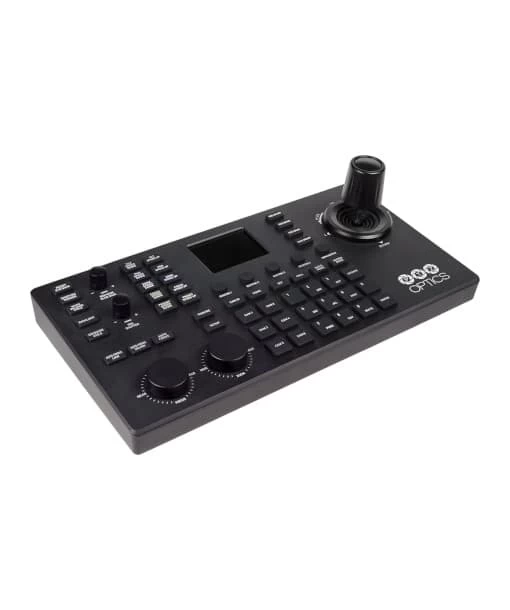

The PTZOptics PT-SUPERJOY-G1 is designed to provide in depth control of the PTZOptics and HuddleCamHD line of cameras for use in production environments and more. With the ability to support both IP and Serial/Analog control from a single controller, the PT-SUPERJOY-G1 presents itself as a flexible control solution.

KEY FEATURES

• Durable metal housing
• PTZOptics VISCA over IP & Serial control
• Limited NDI & Sony control
• PTZOptics Camera On Screen Display
  control
• Full Pan / Tilt / Zoom camera control
• PTZ, Focus, and Preset Speed Adjustment
  on the fly
• 5 Camera Control Groups Groups 1-4 limited to 7 cameras
• 255 camera presets, 9 Quick presets
• 4 Customizable buttons (TCP, UDP, & HTTP)
• Fine tune zoom & focus control dials
• Buttons glow / flash when available
• RTSP Decoder via HDMI
• PTZOptics Focus Lock & Unlock
• Large LCD screen with controller status
• Import / Export settings via network & USB
• 2-Year warranty

SPECIFICATIONS PTZOptics SuperJoy IP & Serial PTZ Camera Controller

INCLUDED BY DEFAULT

• PT-SUPERJOY-G1 joystick controller
• 12V 2A international power supply
• RS-232C / DB9 female to 8-pin mini-din male cable
• PTZOptics PT-SUPERJOY-G1 Quick Start Guide
• Grounding Pin
