Reach YCat Studio – Wireless Live Video Production System With Touch And Built-in 4G (B-STOCK)

Reliable and easy-to-use wireless live video production

Wireless portable live video production system with an extremely thin and light design to realize high speed transmission from up to three 4K high-definition battery operated wireless waterproof PTZ cameras and one wireless battery operated 1080p HD encoder. The yCat solution adopts the Reach second-generation wireless portable recording and broadcasting technology to realize drop-out free, ultra-long-distance (1500 meters) wireless signal transmission with up to 8 hours of recording with no external power supply. To compliment the 4K high-definition cameras, there is a built-in 4G wireless Internet access module and wireless audio module for ultimate in portability. The simple form factor and easy to use interface makes it perfect for recording, sharing and presenting any live event with various effects and titling to make any user look like a professional. And at any time, you can use the platform to share your high quality production and content live or VOD right to Facebook Live or YouTube with ease.

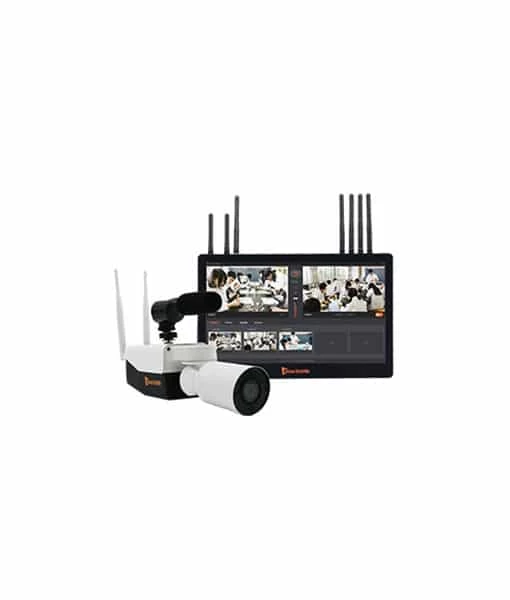

The yCat studio system start set includes:

All in one control console: 1 x YC300

Wireless weatherproof 4K PTZ camera: 1x YC200

Wireless HD encoder (camera bridge): 1x YC100

Optional:

Wireless audio transmitter for RCA audio from external sources like audio mixers









Features of YCat Studio Video Switcher (YC300)

• All in one switcher, switch between 5 video sources with ease and monitor up to 5 using the 14 inch build-in touch monitor console.
• Video Transitions and Compositions; cut, dissolve, wipe, fade to / from black; programmable transition duration. Picture-in-picture (PIP), multiple split views.
• Audio Mixer; Full audio mixer functionality with monitoring mode support and auto follow.
• Overlay Graphics and Custom Scoreboard, Text overlays and lower-thirds. Create custom scoreboards with your own graphics.
• Import Video and Graphics to play out, import multiple video clips and PNG and JPG graphics for live switching, queuing, and highlights.
• Instant Replay, replay in slow motion or normal speed.

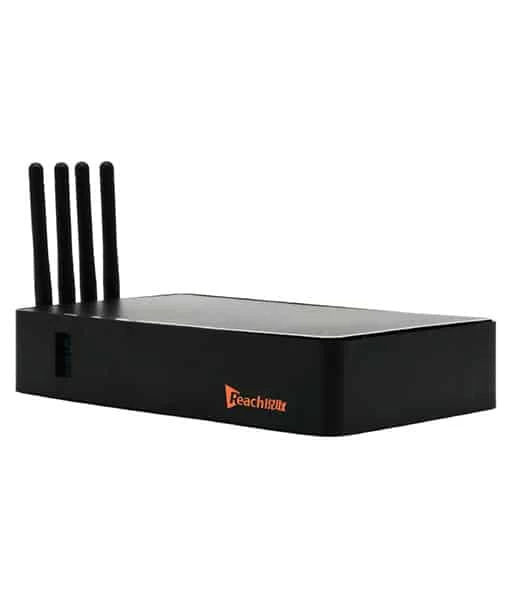

Features of YCat Wireless Camera / Encoder Bridge (YC100)

• HDMI and DVI input with HDMI loop through
• Zero Delay Wireless Video and Audio Transmission to Video Switcher YC300
• Up to 5000 Feet (1500 meters) wireless tranmission distance
• Supports 1080p60 resolution output
• Built in wireless audio and video tranmission module
• Uncompressed 4:2:2 transmission
• 5.8 Ghz Noise Reduction
• RS232 and RS485 connection port
• Built-in battery, 8 hours operation without power supply
• Waterproof and dustproof

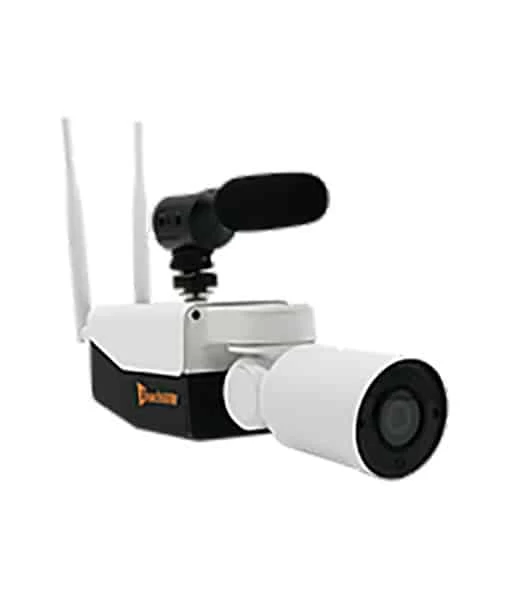

Features of Wireless 4k PTZ Camera (YC200)

• 5Ghz wireless video output
• Wireless video signal and transfer to YC300 video switcher
• Support wireless PTZ control with YC300 video switcher
• Built-in Li-ion battery, for 6-8 hours operation
• Integrated wireless microphone input connector
• The camera can output two video streams at the same time, one panorama, one close-up
• Waterproof IP66 support
