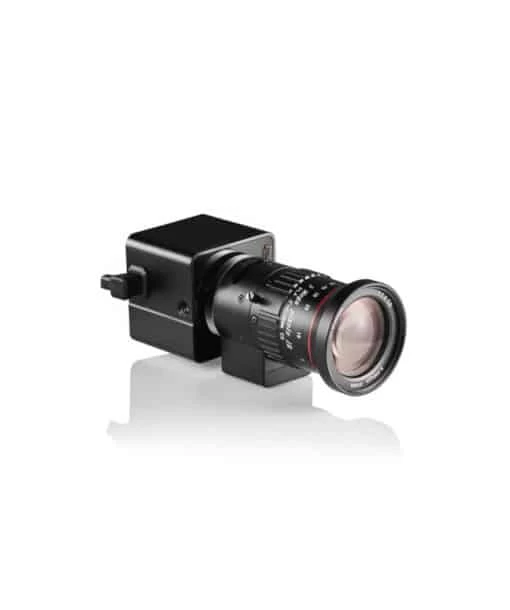

SalRay Works FocalSHOT Ultra-Low Latency 5.0-50mm IP67 POV Camera

SalRay Works focalSHOT Ultra-Low Latency 5.0-50mm IP67 POV Camera

The Salray Works focalSHOT offers Field-of-View flexibility with CS mount type lenses and convenience of 3G-SDI, HDMI, CVBS outputs maintaining a broadcast standard for POV camera applications. It has a latency of 0-15ms which makes it ideal for broadcasting and interactive communications during events. In addition it has a light sensitive 1/2.8-type Exmor R CMOS SONY sensor that can provide a clear image even in low light environments. At last the 5.0-50mm lens has a FOV range of 51°- 6.1° horizontal viewing angle that gives you the possibility to capture a wide dynamic field of view.

KEY FEATURES SalRay Works focalSHOT Ultra-Low Latency

• Module : 1/2.8” Progressive CMOS (Approx. 2.1 mega)
• Valid Pixels : 1920[H]x1080[V] (Approximately 2.13 million pixels)
• Minimum Luminance : 0.1Lux (Day), 0.01Lux (Night), 0.001Lux(DSS on)
• Video output format : 3G-SDI, HDM) simultaneous outputs
  • 1920x1080p59.94, 1920x1080i59.94, 1920x1080p29.97, 1280x720p59.94
  • 1920x1080p50/60, 1920x1080i50/60, 1920x1080p25/30, 1280x720p50/60
• Lens : Not included. Tested CS lens is available as option
• White Balance : AWB(3,000°K~8,000°K) / ATW(1,900°K~11,000°K) /One push/ Indoor/ Outdoor/ Manual
• Auto Exposure : Full auto/ Shutter PRI/ Gain PRI/ Manual/ FLK Control
• Picture : Back-light/ WDR/ Image stabilizer/ Day&Night/ Digital zoom/ Defect pixel
• Image : Mirror/ DNR/ Gamma
• Display : Cam title / RS485-RS422/ System initial/ Output format
• Audio : Mode/ Audio volume
• System information : Camera model/ F-W Version/ System select/ Baud rate/ Camera ID

Specifications SalRay Works focalSHOT Ultra-Low Latency

Model	focalSHOT-UltraLatency 5.0-50mm
Sensor	Image Sensor	1/2.8” Exmor R CMOS (Approx. 2.16 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	1945 (H) X 1097 (V) approx.. 2.13M pixels
	Min. Illumination	Color : 0.1 lx (1/30 sec), B&W : 0.01 lx (1/30 sec)
Optics	Lens FOV	5.0 ~ 50mm (Focal Length), H(51˚ ~ 6.1˚)
Functions	Exposure	BRIGHTNESS / SHUTTER / SENS-UP / AGC
	Backlight	HLC/BLC/WDR
	Day & Night	AUTO / COLOR / B&W / EXTERN
	White Balance	AUTO (3,000°K~8,000°K) / AUTOext (1,900°K~11,000°K) / PRESET / MANUAL
	Electronic Shutter	NTSC: 1/30~1/30000, PAL: 1/25~1/30000, SENS-UP ( ~X64)
	Other	Privacy Mask, Image Mirror, 3DNR, GAMMA Control, Digital Zoom, Lens Shading, Flickerless, Sharpness, Defog, DIS (Digital Image Stabilizer), Intelligent Motion Detection, Sens-up(DSS – Digital Shutter Speed)
Video output	SDI (BNC)	SMPTE 292M (1.485Gbps): 1080p@25/30, 1080i@50/60, 720p@50/60, 720p@25/30 SMPTE 424M (2.97Gbps) : 1080p@50/60
Audio Input	MIC Input	Mic Level (1Vrms). 2.5V Mic bias Audio On / Off
Control	RS422/485 REMOTE CONTROL	2400~115200bps PELCO, D/P, VISCA
General	Operation Temperature	-10℃ ~ 50℃
	Power Input	12VDC (7VDC to 15VDC)
	Power consumption	Max 3.6W
	Dimensions	47.5(W) x 46(H) x 39.8(D) mm (Without Lens)
	Net Weight	Approx. 200g



INCLUDED BY DEFAULT

• SalRay Works focalSHOT
• 5.0-50mm lens
• 12V Adapter
