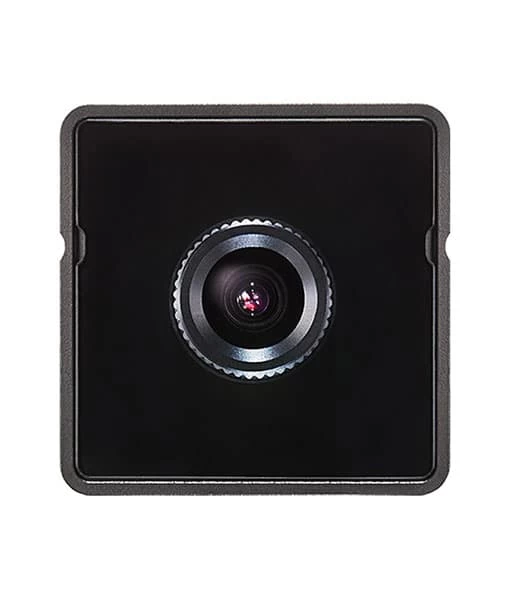

SalRay Works SalSHOT 3G-SDI And HDMI Ultra-Low Latency

SalRay Works salSHOT 3G-SDI and HDMI Ultra-Low Latency

The Salray Works salSHOT is suitable for situations where latency is crucial for a good production. It has a latency of 0-15ms which makes it ideal for broadcasting and interactive communications during events. In addition it has a light sensitive 1/2.8-type Exmor R CMOS SONY sensor that can provide a clear image even in low light environments. At last the 2.9mm lens has a 120° horizontal viewing angle that gives you the possibility to capture a wide range field of view.

KEY FEATURES SalRay Works salSHOT Ultra-Low Latency

• Ultra Low Latency 0-15 ms video delay
• Resolution 1920×1080 60p/59.94p4.3mm
• 2.9mm: 120° horizontal viewing angle
• 4.3mm: 84.3° horizontal viewing angle

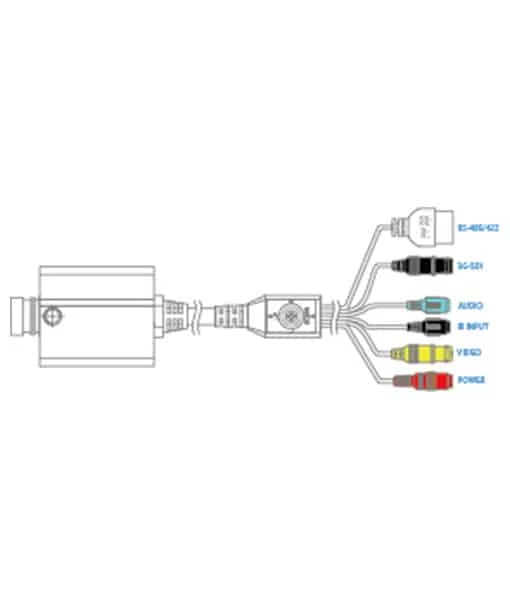

• Output 3G-SDI, HDMI and CVBS
• VISCA, PELCO-D/P, RS-422/485
• Multi-input Audio/IR remote
• Dimension 37x37x42.5mm (WxHxD)
• Patented Camera OSD

Specifications SalRay Works salSHOT Ultra-Low Latency

Model	salSHOT-UltraLatency
Sensor	Image Sensor	1/2.8” Progressive Sony Exmor R CMOS (Approx. 2.16 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	1945 (H) X 1097 (V) approx.. 2.13M pixels
	Min. Illumination	Color : 0.1 lx (1/30 sec, DSS OFF), B&W : 0.01 lx (1/30 sec DSS OFF)
Optics	Lens FOV	2.9mm [140.5˚(D) X 120.0˚(H) X 65.1˚(V)] 4.3mm [102.2˚(D) X 84.3˚(H) X 44.0˚(V)]
Functions	Exposure	BRIGHTNESS / SHUTTER / SENS-UP / AGC
	Backlight	HLC/BLC/WDR
	Day & Night	AUTO / COLOR / B&W / EXTERN
	White Balance	AUTO (3,000°K~8,000°K) / AUTOext (1,900°K~11,000°K) / PRESET / MANUAL
	Electronic Shutter	NTSC: 1/30~1/30000, PAL: 1/25~1/30000, SENS-UP ( ~X64)
	Other	Privacy Mask, Image Mirror, 3DNR, GAMMA Control, Digital Zoom, Lens Shading, Flickerless, Sharpness, Defog, DIS (Digital Image Stabilizer), Intelligent Motion Detection, Sens-up(DSS – Digital Shutter Speed)
Video output	SDI, HDMI, CVBS	SMPTE 292M (1.485Gbps): 1080p@25/30, 1080i@50/60, 720p@50/60, 720p@25/30 SMPTE 424M (2.97Gbps) : 1080p@50/60
Audio Input	MIC Input	Mic Level (1Vrms). 2.5V Mic bias Audio On / Off
Control	RS422/485 REMOTE CONTROL	2400~115200bps PELCO, D/P, VISCA
General	Operation Temperature	-10℃ ~ 50℃
	Power Input	12VDC (7VDC to 15VDC)
	Power consumption	Max 3.6W
	Dimensions	43(W) x 43(H) x 59.1(D)mm
	Net Weight	Approx. 380g



INCLUDED BY DEFAULT

• salSHOT-UltraLatency
• 2.9mm lens
• 4.3mm lens
• 12V Adapter
