Saramonic UwMic9S UHF Wirless Microphone
The Saramonic UwMic9s UHF wireless microphone system provides a premium 2-person wireless audio solution for Broadcast &TV, ENG, filmmakers, vloggers, mobile journalists and content creators for a remarkable price. It is an easy-to use,high-quality and flexible UHF system. The external input allows the receiver to be connected to a mic or line level device,such as a shotgun microphone, mixer,recorder or music player to capture additional sound or music.The system can be powered through its USB-C ports,allowing it to run for numerous hours on a USB-C 5V power bank.
RX9S Portable Receiver
The Saramonic UwMic9s RX is a camera-mountable dual-channel UHF wireless receiver.It features wide switching RF bandwidth,a high-contrast OLED display and infrared,synchronization between transmitter and receiver.The two detachable antennas can be rotated 360° for better reception.The receiver’s output can be toggled between mono and stereo modes,The low-cut function on the receiver minimizes low-frequency rumble.
Body-pack Transmitter TX9S
The Saramonic UwMic9S-TX9S is a mountable body-pack transmitter.It features an easy-to-read OLED display,a detachable antenna and built-in rechargeable batttery.with the line input and mic input jack,it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices,A short press of the power button mutes the mic between takes.The locking function prevents the transmitter from being muted or turned off accidentally.
KEY FEATURES
- Delivering professional broadcast-quality sound
- Low-cut function for low-frequency noise canceling
- Infrared pairing function
- Mono/Stereo mode switchable
- Vivid High-contrast OLED display
- Detachable and 360°switchable antenna
- ON/OFF physical switches for group channel A and B
- Independent left and right channel outputs
- Built-in rechargeable Li-ion battery
- Mic and Line input for multi-layered content creating
- Headphone monitoring available

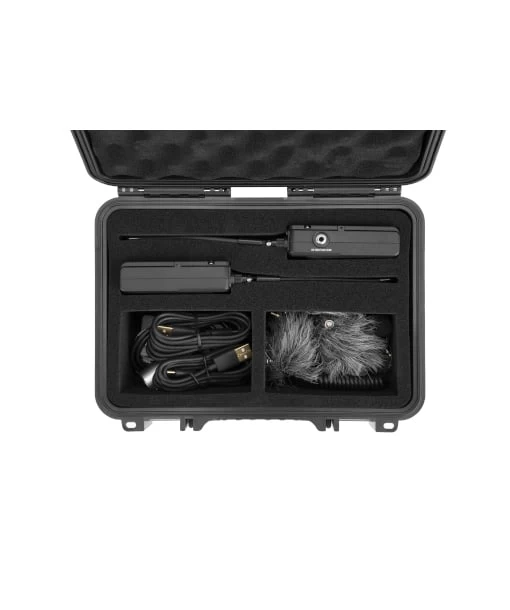

- Watertight suitcase included
SPECIFICATIONS SARAMONIC UwMic9S
Receiver RX9S
| Channel number: | 96 |
| Channel group: | A and B |
| Oscillator type: | PLL synathesizer |
| Audio output connector: | 3.5mm mini jacks(A and B channel output),
3.5mm headphone output |
| Audio input connector: | 3.5mm mini jack(MIC IN/Line In jack) |
| Antenna: | 1/4λ wire antenna |
| Audio output level: | -60 dBV |
| Headphone output level: | 30mW(16Ω) |
| Receive frequencies: | 514MHz-596MHz |
| Receive sensitivity: | -95dBm |
| Signal-to-noise ratio: | 75dB or more |
| Reference deviation: | ±5kHz(-60 dBV,1kHz input) |
| Frequency response: | 40Hz to 18kHz(+/-3dB) |
| Distortion | 0.2% or less |
| Spur suppression | -60dB |
| Reference audio input level | -60dBV(Mic input,0dB attenuation) |
| Built-in battery capacity | 2000mA |
| Power Requirements | Built-in Li-ion Battery or USB-C DC 5V |
| Continuous use time | 8 hrs |
| Dimension | 220×64×25mm |
| Weight | 193g(6.8oz) |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to +55℃ |
Transmitter TX9s
| Channel number: | 96 |
| Channel group: | A and B |
| Oscillator type: | PLL synathesizer |
| Carrier frequencies: | 514MHz-596MHz |
| Reference deviation: | ±5kHz(-60 dBV,1kHz input) |
| Signal to noise ratio: | 75dB or more |
| Spur suppression | -60dB |
| Voice delay | 12ms |
| Antenna | 1/4λ wire antenna |
| Audio input connector | 3.5mm mini jacks(MIC IN and LINE IN jack) |
| Reference audio input level | -60dBV(MIC input,0dB attenuation) |
| Distortion | 0.2% or less |
| Built-in battery capacity | 2000mA |
| Power Requirements | Built-In Li-ion Battery or USB-C DC 5V |
| Continuous time | 8hrs |
| Dimensions | 220*64*25mm |
| Weight | 157g(5.5 .oz) |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to +55℃ |

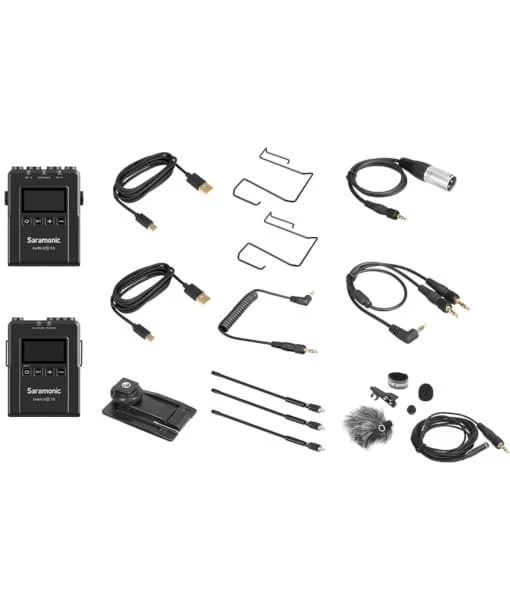

INCLUDED BY DEFAULT
- 1×Body-pack transmitter:TX9S
- 1×Portable receiver:RX9S
- 1×DK3A Omnidirectional Lavalier Microphone
- 1×1′(30cm)SR-C2004 3.5mm TRS Male to Dual Locking-type 3.5mm TRS Male Y-Cable
- 1×1.3′(40cm) XLR to 3.5mm TRS Locking-type plug Audio Cable
- 2×3.8′(1.2m)USB-C Charging Cables
- 1×2.6′(80cm)3.5mm TRS Locking-type Plug audio Cable for Cameras
- 3×Antennas
- 2×Belt Clips
- 1×Cold Shoe Mount Adapter
