Sennheiser AVX-Combo SET





Sennheiser AVX-Combo SET

The AVX-Combo SET includes a handheld microphone, the plug on receiver, a bodypack transmitter with lavalier microphone and all accesories to operate out of the box on camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera – saving battery power. The AVX matches perfectly to your camera’s input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity.ity.



Features

• Very fast setup
• Plugs directly into XLR audio input
• Ultra compact receiver
• Switches on/off by P48 Phantom power
• Optimized dynamic range
• Auto frequency management
• AES 256 encryption
• License free
• Accessories included for DSLR use
• Metal housing



Technical Specifications



System
Frequency Response	20 to 20,000 Hz
Dynamic Range	> 120 dB (A)
THD	Typical 0.1%
Audio Sampling	24-bit at 48 kHz
Signal to Noise Ratio	> 90 dB (A)
RF Frequency Range	1880 to 1930 MHz (country specific)
Modulation	GFSK with return channel
Diversity	TDMA fast switching antenna diversity
Latency	19 ms
Temperature Range	Operation: 14 to 131° F (-10 to +55° C) Storage: -4 to 158°F (-20 to +70°C)
Simultaneous Operation of Units	Up to 8 units under optimal conditions

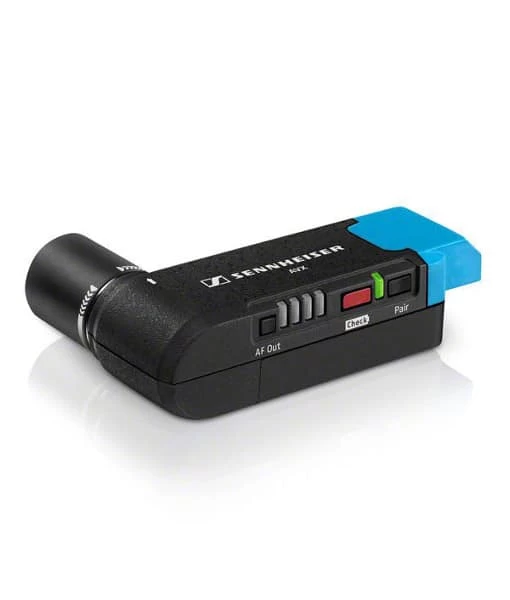

Receiver
RF Sensitivity	<-90 dBm
Transmission Power	Typical 15 dBm e.i.r.p.
Audio Output	XLR male, balanced
Audio Output Level	-30 dBu to 0 dBu in 4 steps
Power Supply	BA 20 (Li-ION 3.7 VDC), alternative USB
Operation Time	> 4 hours
Weight	3 oz (85 g)

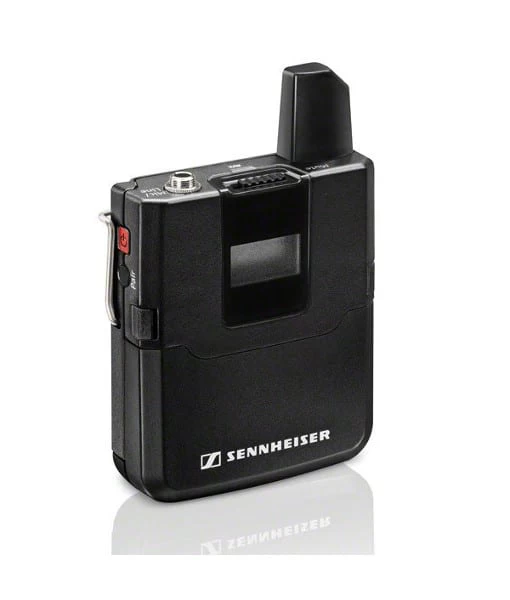

Bodypack Transmitter
Transmission Power	100 mW average (250 mW peak), country specific
Frequency Response	50 to 20,000 Hz
Input Sensitivity	Automatic sensitivity adjustment
Power Supply	Energy pack BA 10 (Li-Ion 3.7 V)
Operating Time	Typical 15 hour with Energy pack
Input	3.5 mm jack
Weight	9.9 oz (280.0 grams) including mic head and energy pack

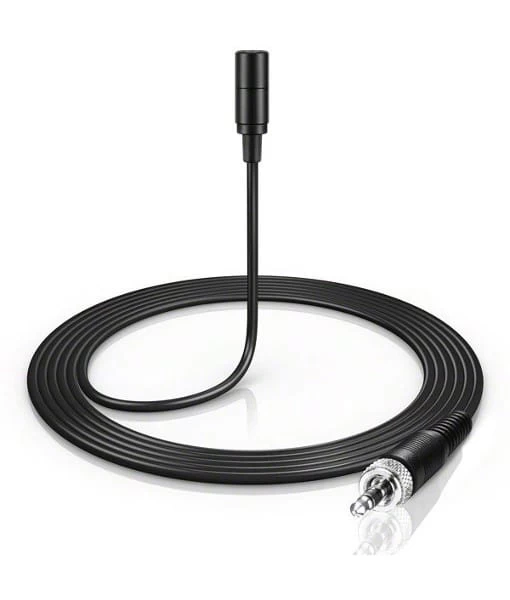

Mic Capsule
Transducer Principle	Dynamic
Sensitivity	1.8 mV/Pa
Directivity	Omnidirectional
Max SPL Level	154 dB

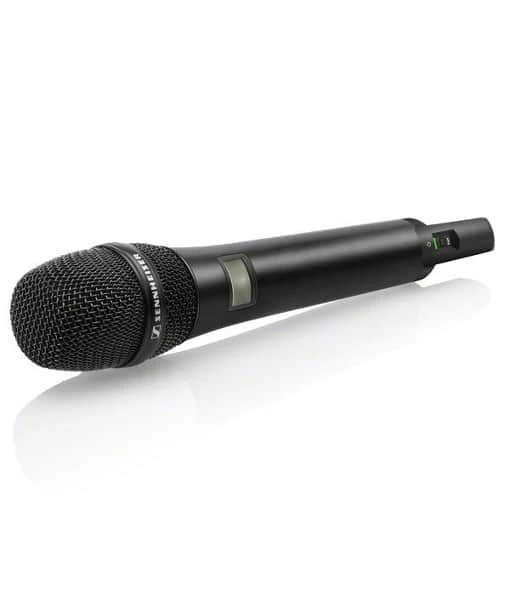

Handheld Transmitter
Frequency Response	20 to 20,000 Hz
Dynamic Range	> 120 dB (A)
THD	Typical 0.1%
Audio Sampling	24-bit at 48 kHz
Signal to Noise Ratio	> 90 dB (A)
RF Frequency Range	1880 to 1930 MHz (country specific)
Modulation	GFSK with return channel
Diversity	TDMA fast switching antenna diversity
Latency	19 ms
Temperature Range	Operation: 14 to 131° F (-10 to +55° C) Storage: -4 to 158°F (-20 to +70°C)
