Sennheiser EW 100 G4-ME2
The Sennheiser EW 100 G4-ME2 is a versatile wireless systems for those who live streams or records with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage.
Features
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Technical Specifications
| Wireless Bodypack Transmitter | |
| Modulation | Wideband FM |
| Frequency Range | G: (566 to 608 MHz) |
| Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power | Maximum 30 mW at 50 Ohms |
| Pilot Tone Squelch | Can be switched off |
| Compander | Sennheiser HDX |
| AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum Input Voltage | Microphone/Line: 3 V eff |
| Input Impedance | Microphone/Line: 40 kOhms, unbalanced / 1 MOhms |
| Input Capacitance | Switchable |
| Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
| Operating Time | Typically 8 hours |
| Dimensions (W x L x H) | 3.2 x 2.5 x 0.6″ (82 x 64 x 24 mm) |
| Weight | 5.6 oz (160 g) |
| Receiver | |
| Frequency Band | G: (566 to 608 MHz) |
| Type of Receiver | EM 100 G4 half-rack mountable true diversity UHF |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Receiver Type | True diversity |
| Sensitivity | < 2.5 μV for 52 dBA (with HDX, peak deviation) |
| Adjacent Channel Selectivity | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV |
| Pilot Tone | Squelch: Can be switched off |
| Antenna Inputs | 2 x BNC sockets |
| Compander | Sennheiser HDX |
| EQ Presets | Switchable, act on line and monitor outputs
Preset 1: Flat |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| AF Output | 1/4″ (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu |
| Output Range | AF Out: 48 dB (3 dB steps) |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 12 VDC, 300 mA |
| Dimensions (W x L x H) | 7.48 x 8.35 x 1.69″ (190 x 212 x 43 mm) |
| Weight | 2.16 lb (980 g) |
| Lavalier Microphone | |
| Compatibility | AVX, evolution wireless D1, SpeechLine Digital Wireless, XS Wireless 1, XS Wireless 2 |
| Transducer | Permanent polarized condenser |
| Polar Pattern | Omnidirectional |
| Sensitivity | 20 mV/Pa |
| EIN | 36 dB |
| Maximum SPL | 130 dB |
| Operating Voltage | 7.5 V |
| Frequency Response | 50 Hz to 18 kHz |
| Connector | Threaded EW 3.5 mm connector |
| Windscreen | Integrated, fixed |
| RF | 100% compliant RF compatibility |
| Cable Length | 5.2′ / 1.6 m |
| Diameter | 0.4″ / 10.5 mm |
What’s in the box?

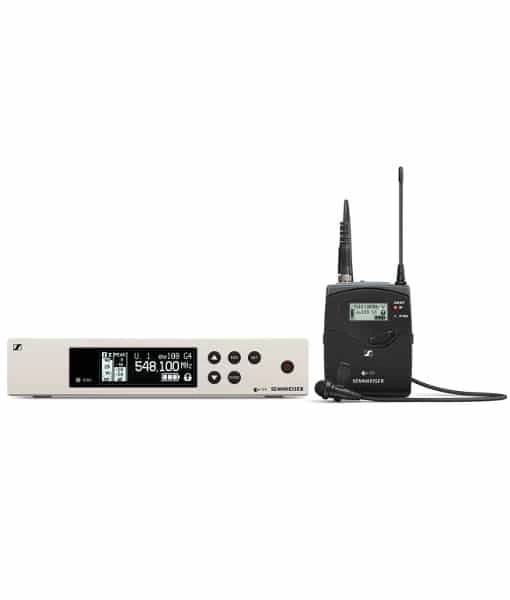

EM 100 G4 true diversity receiver
SK 100 G4 bodypack transmitter
ME 2 clip-on microphone (ew 100 G4-ME2 set only)
ME4 clip-on microphone (ew 100 G4-ME4 set only)
GA 3 rackmount set
Power supply
2 AA batteries
2 rod antennas
RJ 10 cable
Quick guide
Safety guide
Manufacturer declaration sheet
Frequency supplement sheet
Downloads
Quick start guide
EW 100 G4-ME2 Quick start guide
Datasheet
EW 100 G4-ME2 Datasheet
