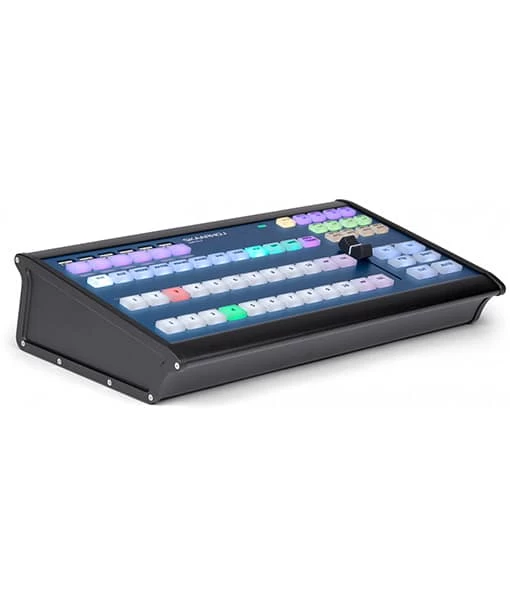

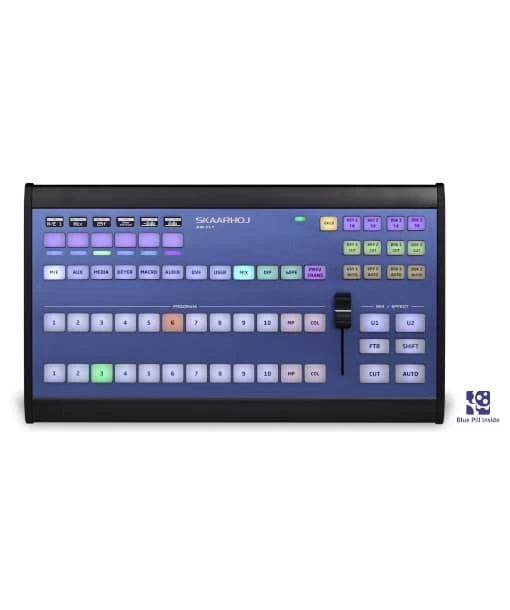

SKAARHOJ Air Fly Desktop Controller For Blackmagic Design ATEM

SKAARHOJ Air Fly for ATEM w/Blue Pill Inside

Get ready to work out of the box with Air Fly. With Air Fly you have a full featured desktop controller for live switching. We’ve made a special keypad versions for ATEM, vMix and Tricaster systems at a very competitive price point. All versions gives you full freedom to access all device cores. It simply works out of the box and, as always, you customize its functions through UniSketch OS.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.

Outstanding differences from previous or similar versions
Blue Pill Inside added. The Air Fly for ATEM can be distinguished from the Air Fly for TriCaster and Air Fly for vMix due to its printed text on the buttons

KEY FEATURES

• Blue Pill Inside
• Programmable four-way buttons with OLED displays
• RGB multi-level metering LEDs for state indication and tally
• Function Selector Row
• Keyer section with all essentials
• 12-key bus rows with four-ways buttons and OLED legends
• 61 dimmable RGB backlit elastomer keys
• Low profile durable transition fader
• ME section with multi-level shift and user keys
• Ethernet with PoE+ (IEEE802.3at)
• Designed and built in Denmark

SPECIFICATIONS SKAARHOJ AIR FLY ATEM

Model	AIR-FLY-4ATEM-V1B
Compatibility	Blackmagic Design ATEM Switchers
Controls and Indicators	6 x Programmable 4-Way Buttons with OLED Displays 6 x RGB Multilevel Metering LED Bars 12 x Function-Selector Buttons 24 x Program Keys 1 x Transition Fader 13 x Function Keys 6 x Mix/Effect ME Keys
Operating System	Blue Pill
Connectors	1 x RJ45, Ethernet 1 x Micro-USB 1 x DC Power Input
Power Source	PoE IEEE802.3af, DC
Dimensions	44 x 23 x 14 cm
Weight	2.5 kg

INCLUDED BY DEFAULT

• SKAARHOJ Air Fly for ATEM w/Blue Pill Inside
• Power Adapter
