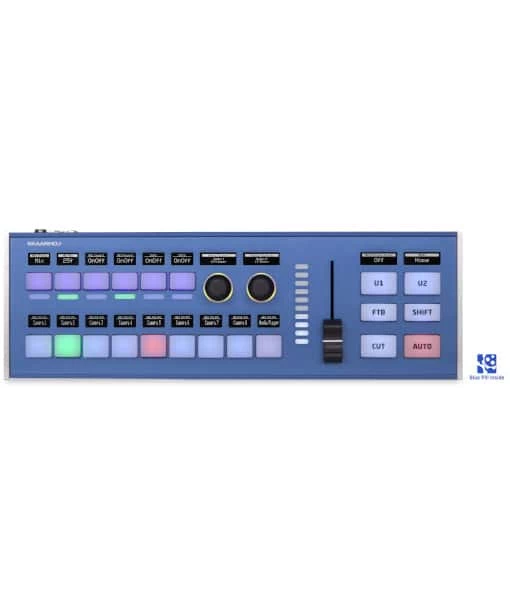

SKAARHOJ Live Fly W/NKK Buttons And Blue Pill Inside

SKAARHOJ Live Fly w/NKK buttons and Blue Pill Inside

Live Fly leaves no room for regret. This professional midsize controller is supercharged with flexible interface technologies so you can repurpose, extend, integrate and configure it over and over again.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.

Outstanding differences from previous or similar versions
Blue Pill Inside and high-quality Japanese style NKK buttons added to the Live Fly design

KEY FEATURES

• Blue Pill Inside
• RGB multi-level metering LEDs for VU, tally or step indication
• Precision encoders for adjusting settings or selecting graphics
• Transition fader with RGB LED bar for transition position or VU metering
• Versatile bus delegation row with display labels
• Programmable four-way buttons for superior flexibility
• ME section with multi-level shift and user keys
• Slim, ergonomic console form factor
• NKK buttons
• Ethernet with PoE+ (IEEE802.3at)
• Designed and built in Denmark

SPECIFICATIONS SKAARHOJ LIVE FLY w/NKK buttons and Blue Pill Inside

Model	LIVE-FLY-N-V1B
Number of Cameras Supported	8
Controls and Indicators	9 x Programmable 4-Way Buttons with OLED Displays 6 x 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays 2 x Encoder Knobs with OLED Displays 1 x Transition Fader with RGB LED Bar 6 x ME-Section Buttons with 2 OLED Displays

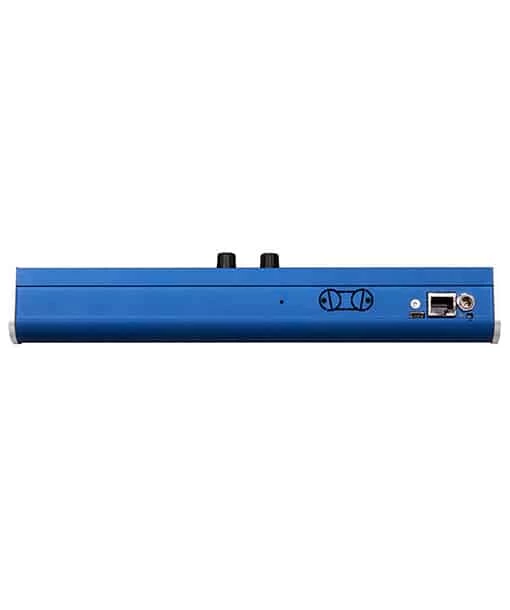

Connectors	1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input
Power Source	PoE IEEE802.3af
Operating System	Blue Pill
Dimensions	32 x 15 x 7 cm
Weight	990 g

INCLUDED BY DEFAULT

• Live Fly w/NKK buttons and Blue Pill Inside
• Power Adapter
• USB programming cable
