SKAARHOJ Mini Fly

SKAARHOJ Mini Fly

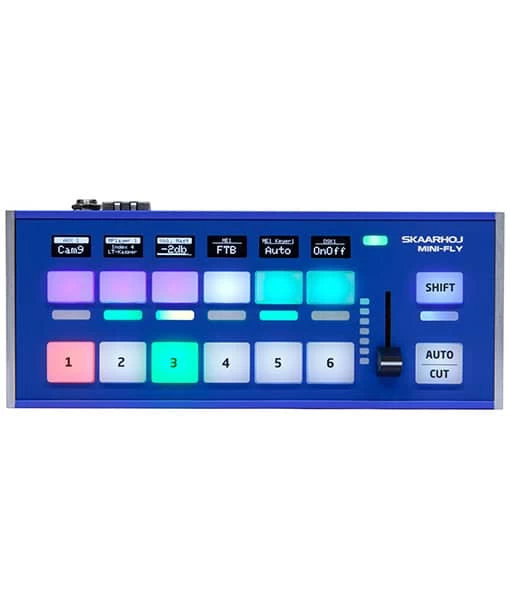

When it comes to live switching, the Mini Fly from SKAARHOJ is designed to be your Swiss Army knife. Compact and versatile, this controller gives you powerful tools for running live productions involving up to six cameras. Its interface includes six programmable four-way buttons with OLED displays, six programmable four-way audio buttons with RGB multilevel metering LEDs and OLED displays, a transition fader with an LED bar, a shift button with step indicator, and an auto/cut button. The Mini Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.



KEY FEATURES

• RGB multi-level metering LEDs for tally or step indication
• Programmable four-way buttons with crisp OLED displays
• Multi-level shift key with step indicator
• Custom molded RGB backlit keys
• LED bar for transition position
• Smooth transition fader and Cut/Auto button
• 1/4″-20 thread at bottom for mounting clamps
• Slim, ergonomic console form factor
• Ethernet with PoE (IEEE802.3af)
• Designed and built in Denmark

SPECIFICATIONS SKAARHOJ MINI FLY

Model	Mini Fly V1
Number of Cameras Supported	6
Controls and Indicators	6 x Programmable 4-Way Buttons with OLED Displays 6 x Programmable 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays 1 x Transition Fader with RGB LED Bar 1 x Shift Button with Multilevel Indicator 1 x Auto/Cut Button
Connectors	1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input
Power Source	PoE IEEE802.3af
Operating System	UniSketch
Mounting Points	1 x 1/4″-20 Thread, Bottom
Dimensions	32 x 15 x 7 cm
Weight	725 g

INCLUDED BY DEFAULT

• Mini Fly Switcher
• USB programming cable
• Network Cable
