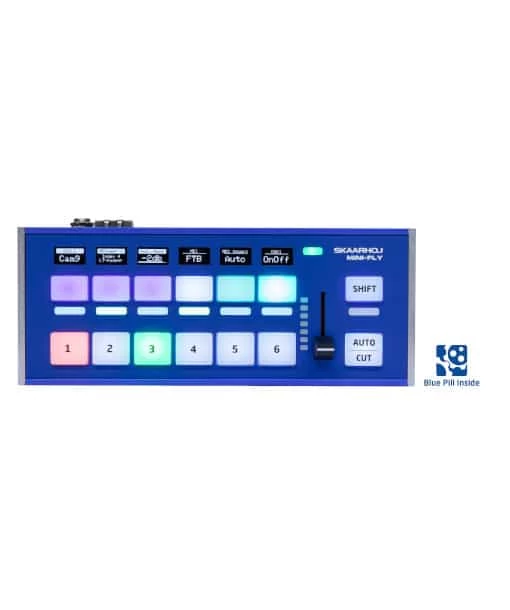

SKAARHOJ Mini Fly W/Blue Pill Inside

SKAARHOJ Mini Fly w/Blue Pill Inside

With the super compact and super flexible Mini Fly, SKAARHOJ controllers excel in live switching. It’s perfect for small live productions with six cameras, audio monitoring and transitions. And the four-way buttons with OLED displays extend its power beyond imagination.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.

Outstanding differences from previous or similar versions
It comes with Blue Pill Inside. Super compact general panel for switching. Its form factor is the main differentiator.

KEY FEATURES

• Blue Pill Inside
• RGB multi-level metering LEDs for tally or step indication
• Programmable four-way buttons with crisp OLED displays
• Multi-level shift key with step indicator
• Custom molded RGB backlit keys
• LED bar for transition position
• Smooth transition fader and Cut/Auto button

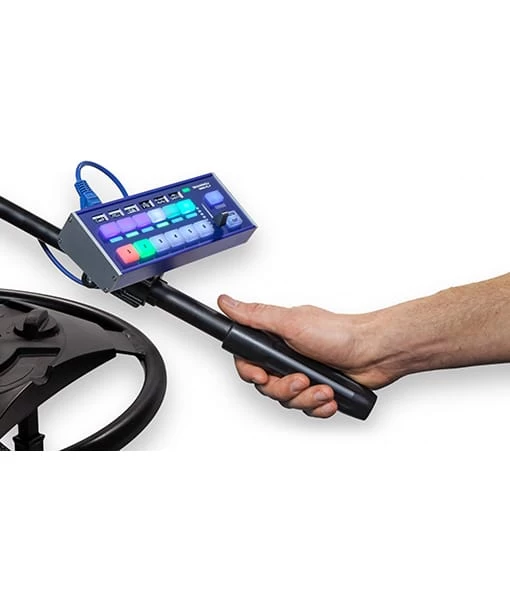

• 1/4″-20 thread at bottom for mounting clamps
• Slim, ergonomic console form factor
• Ethernet with PoE (IEEE802.3at)
• Designed and built in Denmark

SPECIFICATIONS SKAARHOJ MINI FLY

Model	Mini Fly V1-B
Number of Cameras Supported	6
Controls and Indicators	6 x Programmable 4-Way Buttons with OLED Displays 6 x Programmable 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays 1 x Transition Fader with RGB LED Bar 1 x Shift Button with Multilevel Indicator 1 x Auto/Cut Button
Connectors	1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input
Power Source	PoE IEEE802.3af
Operating System	Blue Pill
Mounting Points	1 x 1/4″-20 Thread, Bottom
Dimensions	32 x 15 x 7 cm
Weight	725 g

INCLUDED BY DEFAULT

• Mini Fly Switcher
• USB programming cable
