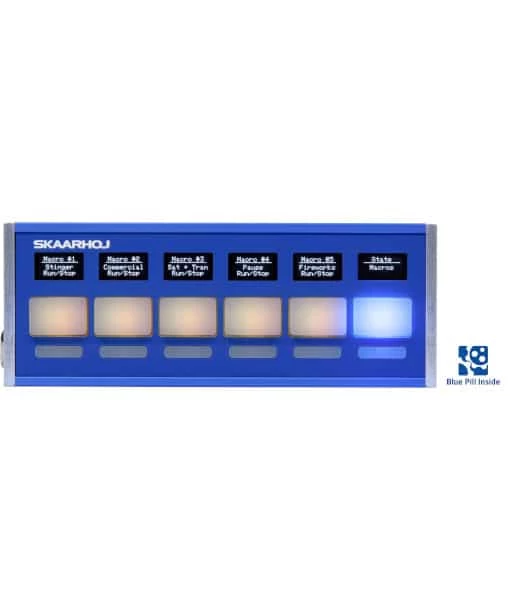

SKAARHOJ Quick Bar w/Blue Pill Inside
This handy little tool will easily be your preferred panel to hand out to operators in charge of a simple task, as you set up the panel for specific actions.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.
Outstanding differences from previous or similar versions
Blue Pill Inside added
KEY FEATURES
- Blue Pill Inside
- RGB multi-level metering LEDs
- Four-way buttons with crisp OLED displays
- Small form factor slightly angled for ergonomic operation
- Ethernet with PoE (IEEE802.3at)
- Designed and built in Denmark
SPECIFICATIONS SKAARHOJ Quick Bar w/Blue Pill Inside
| Hardware specs | |
| Four-way buttons | 6 |
| Encoders | 6 |
| RGB multi level metering LEDs | 6 |
| Product W x D x H (mm) | 116 x 48 x 400 |
| Weight (g) | 160 |
| Shipping box W x D x H (mm) | 320 x 145 x 65 |
| Shipping box Weight (g) | 624 |
| Country of Origin | Denmark |
| In the box | 12V power supply |

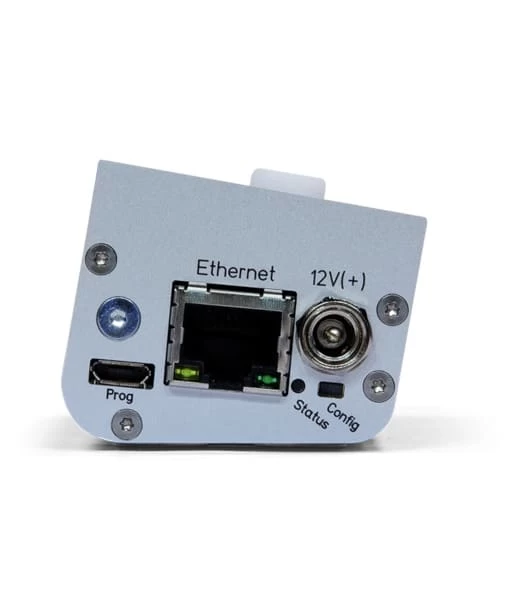

| Connectivity | |
| Programming Port | Ethernet (or Micro USB for setting manual IP) |
| Networking Port | RJ45 Ethernet |
| Power Supply | 12V |
| Operation | |
| Power Consumption | 2.52 Watt |
| Operating System | skaarOS (Blue Pill) |
| Universal Control | Check our website for Device Core to what can be controlled https://www.skaarhoj.com/support/device-cores |
INCLUDED BY DEFAULT
- SKAARHOJ Quick Bar w/Blue Pill Inside
- 12V Power adapter
