The Skaarhoj RCPv2 with Joystick and SDI fits into your existing rack or sits console style on a table top. Use this universal RCP regardless of which camera brand you shade. With the motorized fader option you have the perfect multi camera RCP. Dedicated to scalability and a positive, unified user experience.
- Standard configuration for shading Blackmagic Design cameras through SDI out
- Universal Remote Control Panel
- Classic Iris Joystick
- Large OLED Display for Settings
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

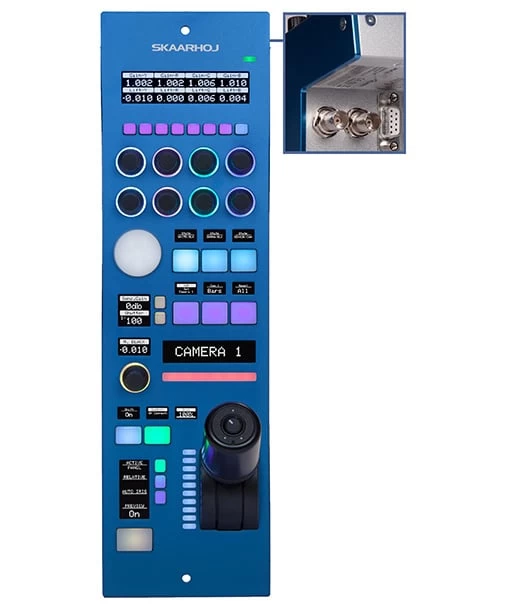

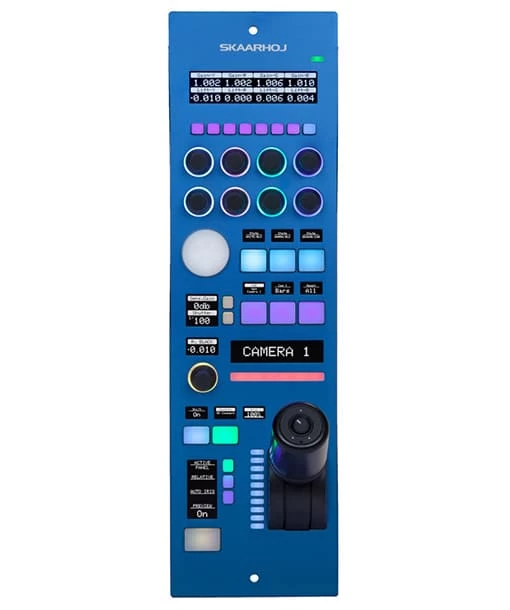

SKAARHOJ RCPv2 Remote Control Panel with Classic Iris Joystick & SDI I/O
Whichever camera brand you’re shading, the RCPv2 from SKAARHOJ provides you with a versatile and programmmable remote control panel to help you get the job done. The RCPv2 fits into your rack or sits console-style on your tabletop. This version of the RCPv2 is equipped with a classic iris joystick with a display and a LED bar as well as encoder knobs, a joystick pad, OLED displays, a preview button, four-way buttons, and a master black knob. Additionally, a Blackmagic Design SDI Arduino shield is built-into the controller for reading and writing camera control data.
The RCPv2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.
KEY FEATURES
- Super crisp window with large display tiles for settings
- High-quality encoders with RGB backlight for function identification
- Pressure and direction sensitive joystick pad
- Camera ID display with OLED technology and RGB tally bar
- Classic iris joystick (with master black ring and preview button) or motorized fader with display and LED bar
- Preview button for GPI or control of video router
- Four-way buttons with OLED legends for dynamic labeling and functionality
- Fits in your existing OB van rack with a Sony RCP Form Factor (4″/102mm wide) or sits console style on table top
- 3G SDI in/output
- Unisketch
- Power Over Ethernet (IEEE802.3af)
- Manufactured and assembled in Denmark
SPECIFICATIONS SKAARHOJ RCPv2 Joystick SDI
| Model | RCPv2 Joystick with SDI |
| Controls and Indicators | 1 x OLED Display with Large Display Tiles 8 x Utility Buttons 8 x RGB-Backlit Encoder Knobs 1 x Pressure-Sensitive Elastomer Joystick Pad 6 x Programmable Pressure- & Direction-Sensitive 4-Way Buttons with OLED Displays 2 x Small Buttons with 1 OLED Display 1 x Camera-ID OLED Display with RGB Tally Bar 1 x Master Black Knob with OLED Display 1 x Classic Iris Joystick with LED Bar 2 x Large Buttons with 2 OLED Displays 3 x Small Buttons with 1 OLED Display 1 x Preview Button 1 x DIP/GPI Camera Selector (Rear) SDI option |
| Operating System | UniSketch |
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB 1 x DC Power Input |
| Power Source | PoE IEEE802.3af, DC |
| Dimensions | 45 x 14 x 15 cm |
| Weight | 2140 g |
INCLUDED BY DEFAULT
- SKAARHOJ RCPv2 Joystick w/SDI Shield
- 12V Power Supply
- Micro-USB Programming Cable
| Brand | Skaarhoj |
|---|---|
| SKU | SK-RCPJOYSV2 |
| MPN | RCP-JOY-S-V2 |
| EAN | 5714074001799 |
