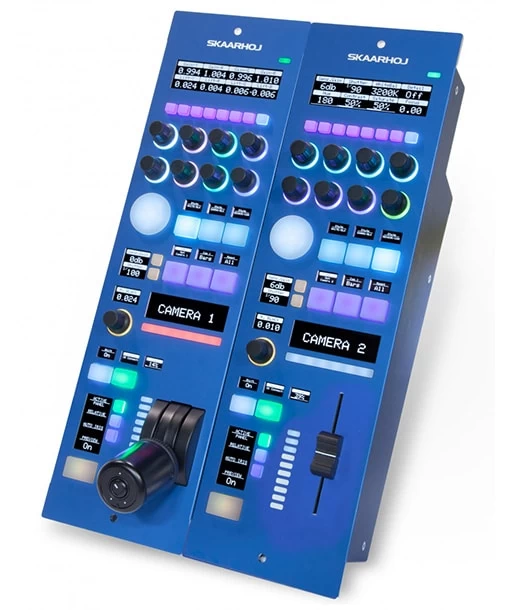

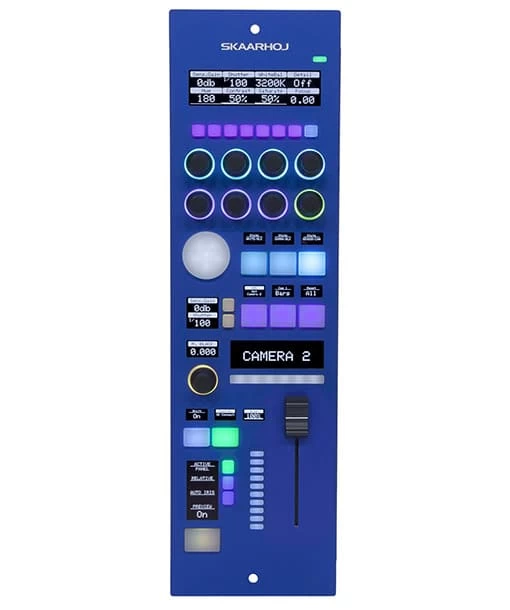

SKAARHOJ RCPv2 Remote Control Panel With Motorized Fader

SKAARHOJ RCPv2 Remote Control Panel with Motorized Fader

Whichever camera brand you’re shading, the RCPv2 from SKAARHOJ provides you with a versatile and programmmable remote control panel to help you get the job done. The RCPv2 fits into your rack or sits console-style on your tabletop. This version of the RCPv2 is equipped with a motorized fader with a display and a LED bar as well as encoder knobs, a joystick pad, OLED displays, a preview button, four-way buttons, and a master black knob.

The RCPv2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

KEY FEATURES

SPECIFICATIONS SKAARHOJ RCPv2 with Fader

Model	RCPv2 Fader
Controls and Indicators	1 x OLED Display with Large Display Tiles 8 x Utility Buttons 8 x RGB-Backlit Encoder Knobs 1 x Pressure-Sensitive Elastomer Joystick Pad 6 x Programmable Pressure- & Direction-Sensitive 4-Way Buttons with OLED Displays 2 x Small Buttons with 1 OLED Display 1 x Camera-ID OLED Display with RGB Tally Bar 1 x Master Black Knob with OLED Display 1 x Motorized Fader with LED Bar 2 x Large Buttons with 2 OLED Displays 3 x Small Buttons with 1 OLED Display 1 x Preview Button 1 x DIP/GPI Camera Selector (Rear)
Operating System	UniSketch
Connectors	1 x RJ45, Ethernet 1 x Micro-USB 1 x DC Power Input
Power Source	PoE IEEE802.3af, DC
Dimensions	45 x 14 x 15 cm
Weight	2140 g

INCLUDED BY DEFAULT

• SKAARHOJ RCPv2 Remote Control Panel with Fader
• 12V Power Supply
• Micro-USB Programming Cable
