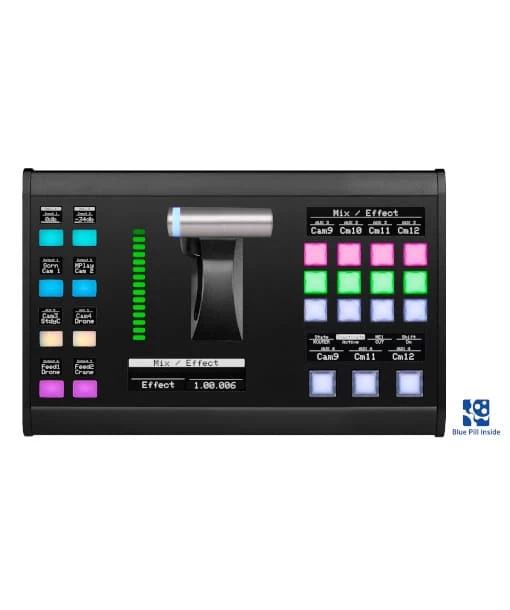

SKAARHOJ T-Block Left w/Blue Pill Inside
The Skaarhoj T-Block Left is very suitable for Live Switching Productions. The T-bar, Four-Way Buttons and NKK buttons makes it the most suitable controller for a big production. T-Block Left and T-Block Right are variations of the same transition block design. The T-bar location is offset so they do not block each other when arranged in a multi-M/E frame set up.
This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.
KEY FEATURES
- Blue Pill Inside
- Universal control of multiple 3rd party devices
- Flexible user configuration
- IP-based remote control, can be powered with PoE
- T-bar and RGB LED bar
- Large, crisp graphical OLED windows for labels and section titles with NKK button rows
- Sculptured cap RGB broadcast buttons – NKK Japanese quality, best of the best
- Auxiliary four-way buttons
- Ethernet with PoE (IEEE802.3af/t)
- Designed and built in Denmark
SPECIFICATIONS SKAARHOJ T-Block Left w/Blue Pill Inside
| Hardware specs | |
| 4-way Buttons | 8 |
| Encoders | 4 |
| NKK Buttons | 15 |
| Customizable OLED screen | 11 |
| Analog components | T-bar and RGB LED bar |
| Product W x D x H (mm) | 280 x 180 x 110 |
| Weight (g) | To be announced |
| Shipping box W x H x D (mm) | 435 x 220 x 145 |
| Shipping box Weight (g) | To be announced |
| Country of Origin | Denmark |
| In the box | 12V power supply |
| Hardware options | |
| MKT1B | |
| Connectivity | |
| Programming Port | Ethernet (or Micro USB for setting manual IP) |
| Networking Port | RJ45 Ethernet |
| Power Supply | 12V |
| Recommended cables (not in the box) | LAN Cat 6 S/FTP or better |
| Operation | |
| Power Consumption | 6.66 Watt |
| Operating System | skaarOS |
| Universal Control | Check our website for Device Core to what can be controlled. https://www.skaarhoj.com/support/device-cores |
INCLUDED BY DEFAULT
- SKAARHOJ T-Block Left w/Blue Pill Inside – Black
- 12V Power adapter
