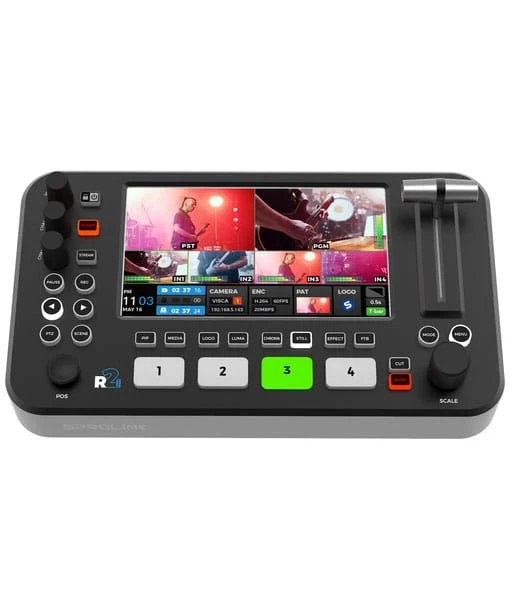

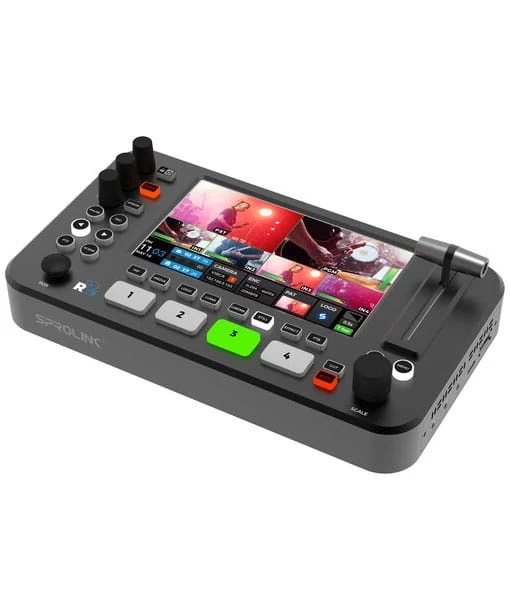

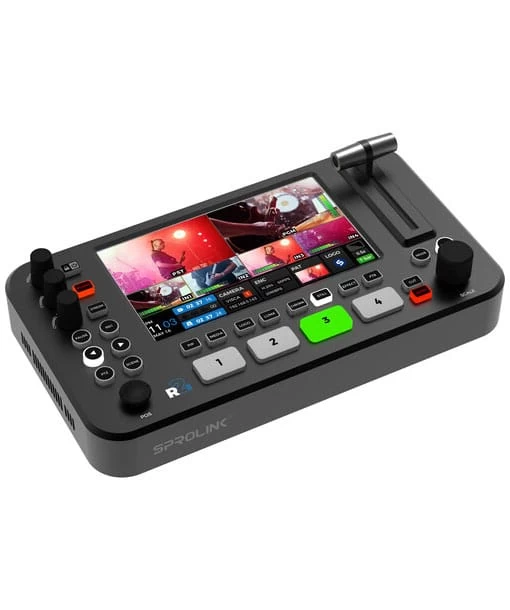

Sprolink NeoLIVE R2 Plus Video Switcher

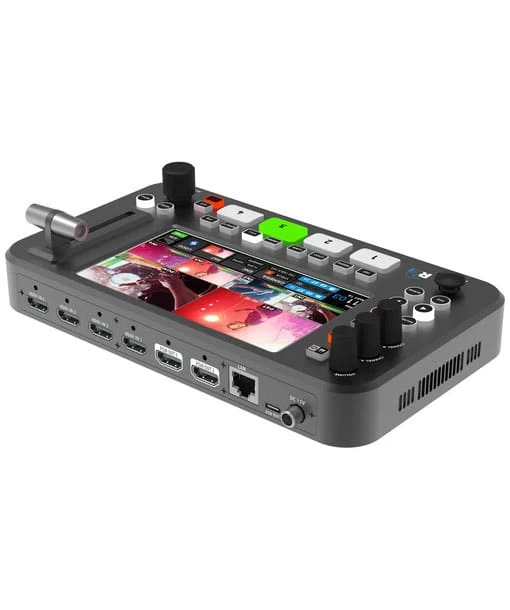

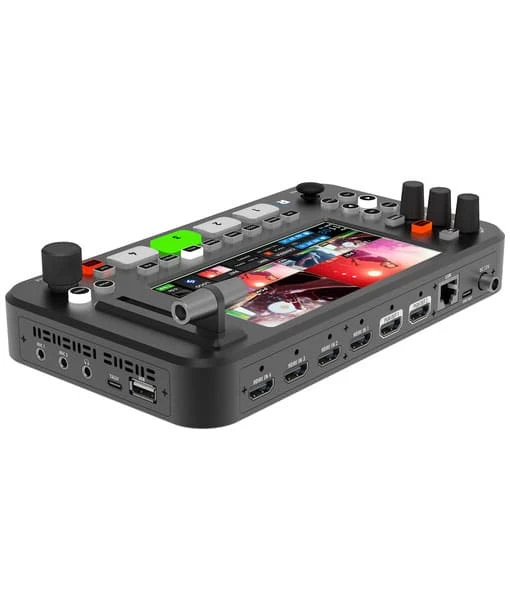

The Sprolink NeoLIVE R2 Plus is designed for 1080p multi-camera livestreaming to the internet for broadcast, education or business applications, the compact Livestreaming Mixer features direct streaming to popular platforms, using the built-in streaming engine and your Ethernet connection plus USB-A and USB-C recording to external disks. This compact switcher provides gaming, corporate, and education livestreams in a four-input live production switcher with an integrated control panel, a T-bar, a 5.5″ 1080p LCD monitor, and two HDMI outputs for external monitoring. Switch between the four HDMI inputs for a live-switched stream of up to 1080p60 resolution and use the RJ45 Ethernet port for system management and remote control of IP PTZ cameras.

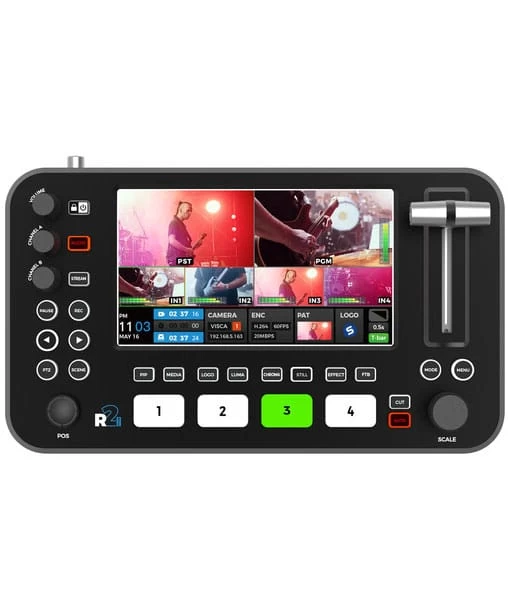

The control surface features a T-bar, a joystick, and easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The NeoLIVE R2 Plus features a chroma-keyer, picture-in-picture (PiP), a built-in audio mixer, a headphone jack, and two analog audio inputs to add your own audio via mic or other audio sources.

E-Commerce

Use the NeoLIVE R2 Plus to easily switch between the host and multiple product views for e-commerce applications. This switcher’s compact and portable design is ideal for smaller studios and retail spaces.

Education and Training

The NeoLIVE R2 Plus can be used for online education and training, bringing multiple locations together for online training with chroma-keyed effects. You can also use it to record a series of lessons using a portable drive or disk.

Business Presentation

The NeoLIVE R2 Plus is great for business presentations and live talk show programs. Using its four camera inputs, it can easily switch between close-up and wide-angle views.

E-Sports Livestreaming

Connect with several gaming consoles and one camera for commentary. Users can livestream at rates up to 60 fps on different game streaming platforms such as Twitch and can add commentary titles using the dynamic icon function.

KEY FEATURES

• Compact design with heat dissipation
• MP4 Recording in 10-30Mbps
• Four HDMI inputs
• Built-in 5.5″ LCD
• HDMI and USB 3.0 Type-C outputs
• UVC support
• Real-time audio and video editing and switching
• Insert graphics, slides, chroma-keying, and transitions
• Two 3.5mm stereo audio inputs for mic or line input
• 3.5mm stereo audio output to mixer or speakers
• Built-in audio mixer
• Remote control of PTZ cameras via LAN
• T-bar for transitions and effects and source selection via buttons
• Stream video directly using the built-in streaming engine and the Ethernet connection
• Compatible with popular platforms using RTMP like TikTok, YouTube, and Facebook Live.

SPECIFICATIONS Sprolink NeoLIVE R2 Plus Video Switcher

Model	Sprolink Neolive R2

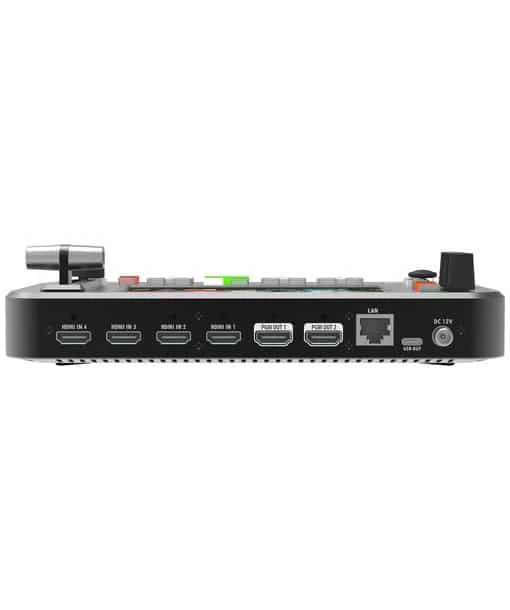

Input
HDMI 1.3	4x HDMI-A (HDMI Source Interface)
USB 2.0	1x USB TypeA (Load Image / Recording in MP4 with 10-30Mbips)
Output
HDMI 1.3	2x HDMI-A (PGM Output)
USB 3.0	1xUSB TypeC (UVC Output Interface)
USB 2.0	1xUSB TypeC (Tally Interface)
Audio
IN	2×3.5mm stereo Jack (MIC / LINE Stereo Input)
OUT	1×3.5mm stereo Jack (Monitoring Output)
LAN	1x RJ45 (Lan Port Control, Lan Port Stream, PTZ Control)
Input resolutions HDMI	720p@50/60 | 1080i@50 | 1080p@24/30/50/60 VESA 1024×768@60 I 1280×768@60 I 1280×800@60 1280×1024@60 I 1360×768@60 I 1366×768@60 1440×900@60 I 1600×1050@60 I 1680×1050@60 1920×[email protected]/24/25/29.97 /30/50/59.94/60
Output resolutions	HDMI 1080p@24/30/50/60 |1080i@50/60 USB3.0 1080p@24/30/50/60 (Video Streaming)
Video Sampling	YUV 4:4:4
Latency	<3 frame
Audio latency	0-2000ms
Display	5.5″ 1920 x 1080
Power	Input Voltage 12V/1.5A Constant power 18W
Available M/E Layers	1 M/E
Effect Types	Transition, Chroma Key
Audio Mixing	2-Channel Mixing
Switching Type	Pushbutton, T-Bar
Streaming	Dual channel RTMP stream
General
Operating Temperature	0 to 70°C
Dimensions	220mm x 126mm x 33mm
Weight	0.5kg

INCLUDED BY DEFAULT

• Sprolink NeoLIVE R2 Plus Video Switcher
