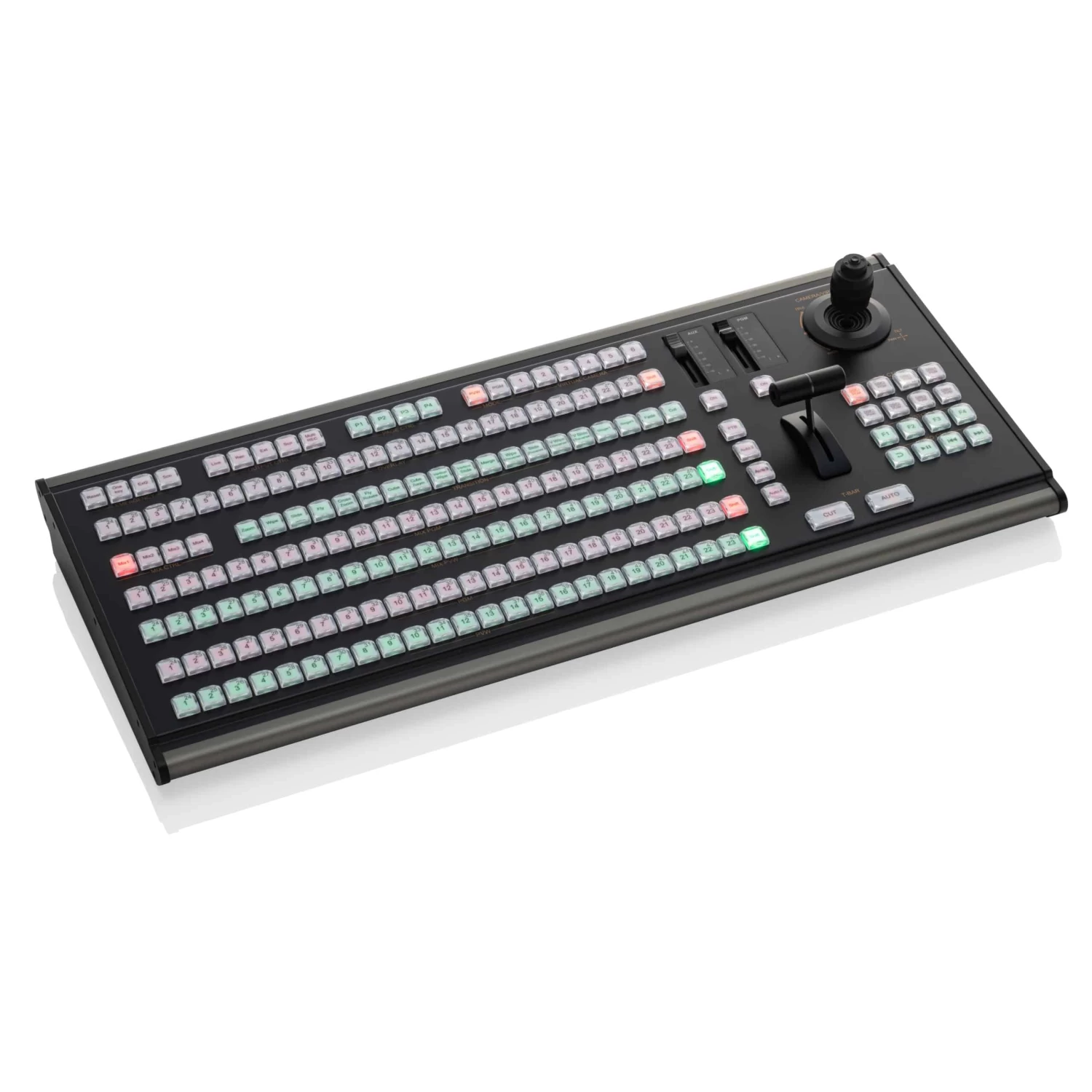

SwitchMasterPro Large 46-Channel Control Surface With Travel Case



SwitchMasterPro Large 46-Channel Control Surface with Travel Case

The SwitchMasterPro Large control surface features 46 total inputs with Program and Preview rows for each input. The control surface is plug-and-play when using with vMix, and it is also compatible with Blackmagic, TriCaster, and Central Control Elite software. It includes a configuration application for a quick setup.

There are multiple transition buttons as well as select, trigger, auto, cut, overlay, and M/E mix buttons. In addition to its 188 curved, backlit buttons, it features a T-bar for transitions and and a joystick for remote camera control. You can store configurations on internal flash memory, and it features USB-A and USB-B Windows system connections, a COM port for PTZ control, and a DB-15 serial connector. A hard-shell travel case is included for storage and transport.

KEY FEATURES

• Plug-and-play with vMix
• 46 total inputs (23 with shift)
• Overlay Prev/Prog buttons
• Live set preview and program scene buttons
• Compatible with BlackMagic Design ATEM & Tricaster (via central control)
• 188 high-quality curved buttons with backlight
• M/E Mix control, overlays, custom triggers
• PTZ camera control via joystick
• Macro control buttons
• Media & GT designer ticker transport controls
• Limited 1-Year Manufacturer Warranty

SPECIFICATIONS SwitchMasterPro Large

Effect Types

Transition

Processing

Switching Type

Pushbutton, Software

Input

Number of Video Input Sources

46

Output

Video Output Channels

1

Connectivity

Other I/O

1x USB-A 1x USB-B 1x DE-9/DB-9 Control 1x DE-15/DB-15

Hardware

OS Compatibility	Windows
Processor	Not Specified by Manufacturer
Wi-Fi	No
Bluetooth	No
Power I/O	1x USB-A (5 VDC at 0.1 A) Input



INCLUDED BY DEFAULT

• SwitchMasterPro Large 46-Channel Control Surface
• Travel Case
