SwitchMasterPro Medium 12-Channel Control Surface With Travel Case



SwitchMasterPro Medium 12-Channel Control Surface with Travel Case

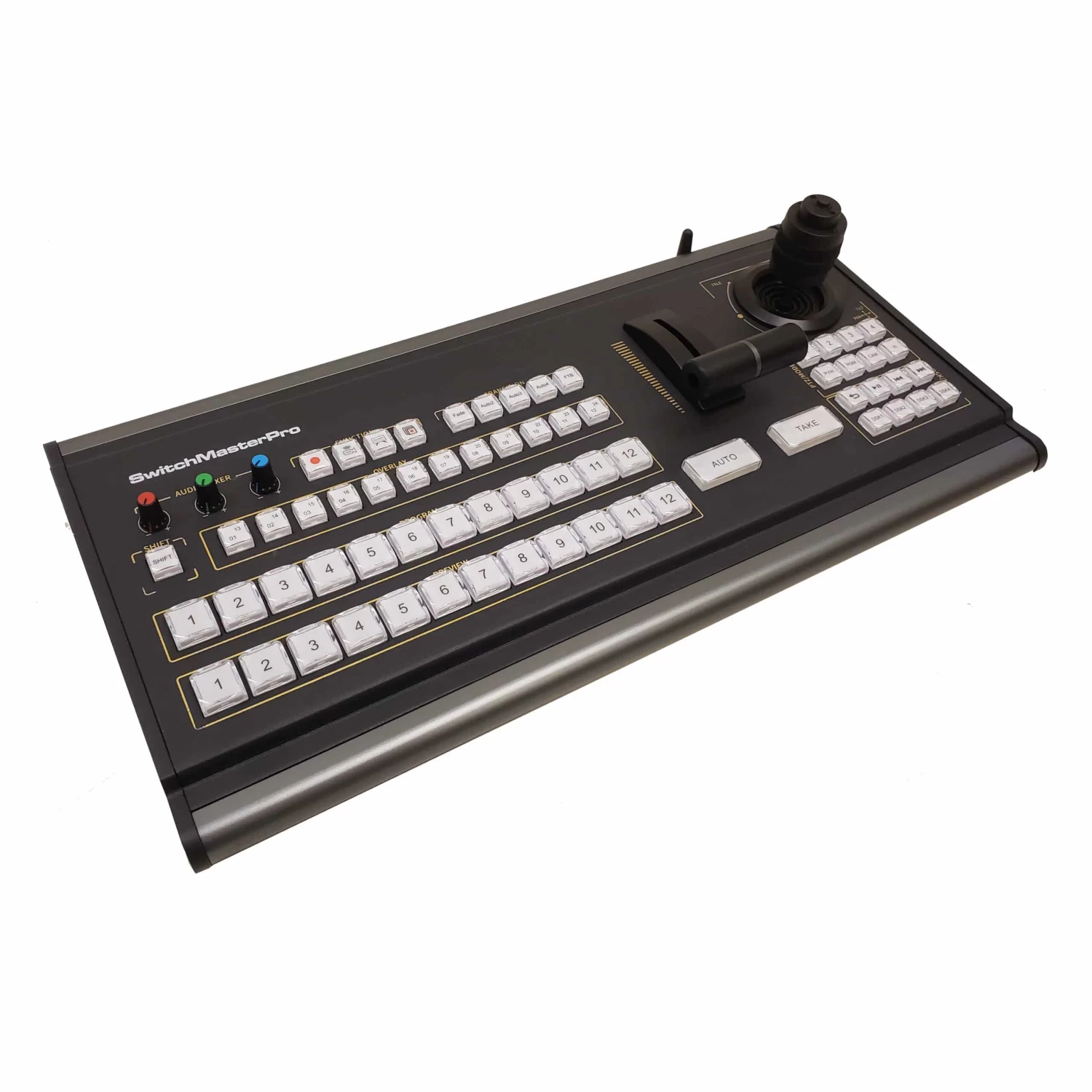

The SwitchMasterPro Medium control surface features 12 total inputs with Program and Preview rows for each input. The control surface is plug-and-play when using with vMix, and it is also compatible with Blackmagic, TriCaster, and Central Control Elite software. It includes a configuration application for a quick setup.

There are multiple transition buttons as well as auto, cut, and live/screen buttons. A T-bar controls the transition rate, there is a volume control for the main Program and headphone output, and there is a joystick for remote camera control. You can store configurations on internal flash memory, and it features USB-A and USB-B Windows system connections, a COM port for PTZ control, and a DB-15 serial connector.

KEY FEATURES

• Plug-and-play with vMix
• 12 total inputs (24 with shift for overlay)
• Direct control of master record/iso, record, and streaming
• Output control of Live, Screen, Ext
• Virtual set presets direct from panel
• Media and GT designer ticker transport controls
• Multiple auto buttons for mix out
• Audio control for main out and B bus with adjustable headphone level
• T-bar to control transitions
• Joystick to control cameras
• Internal memory storage for configuration files
• Limited 1-Year Manufacturer Warranty

SPECIFICATIONS SwitchMasterPro Medium

Effect Types

Transition

Processing

Switching Type

Pushbutton, Software

Input

Number of Video Input Sources

12

Output

Video Output Channels

1

Connectivity

Other I/O

1x USB-A 1x USB-B 1x DE-9/DB-9 Control 1x DE-15/DB-15

Hardware

OS Compatibility	Windows
Processor	Not Specified by Manufacturer
Wi-Fi	No
Bluetooth	No
Power I/O	1x USB-A (5 VDC at 0.1 A) Input

INCLUDED BY DEFAULT

• SwitchMasterPro Medium 12-Channel Control Surface
• Travel Case
