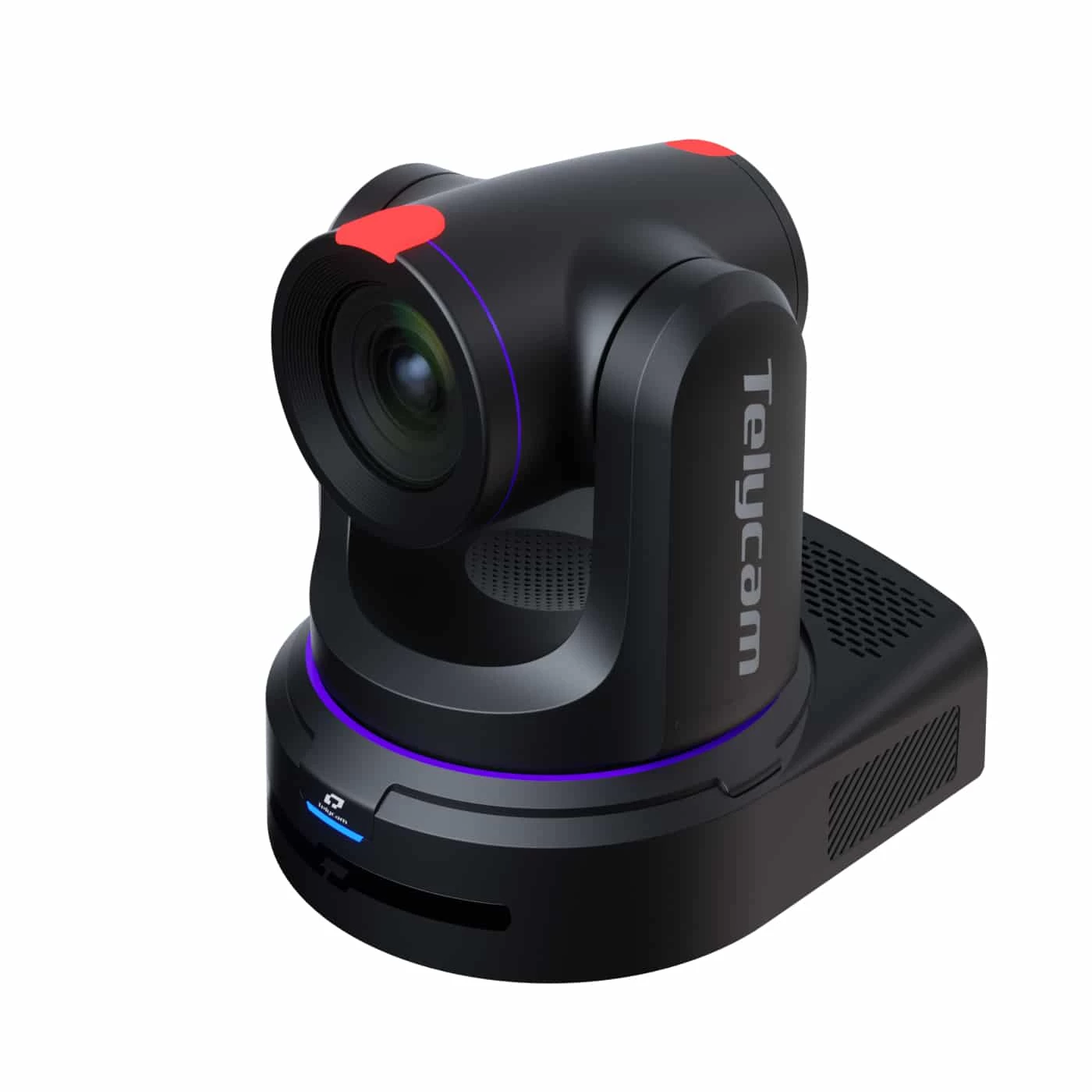

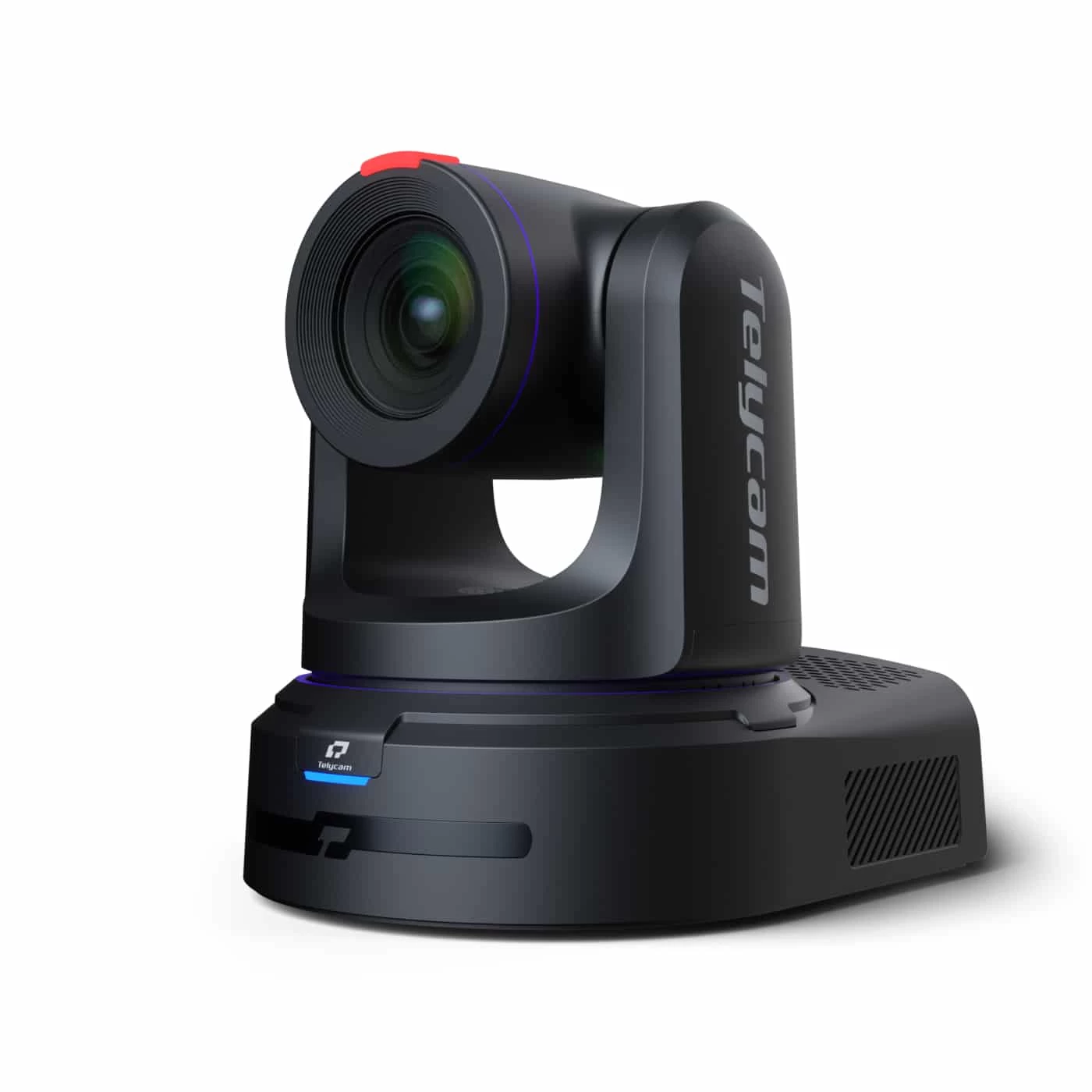

Telycam Explore Lite 1-Inch Sensor High-end PTZ Camera PDAF 20x Optical Zoom (Black)

3G-SDI HDMI NDI|HX2 XLR FREED

Introducing the Telycam Explore Lite (1-Inch Sensor PTZ Camera with 20x Optical Zoom)— a powerful and versatile camera designed for professional video production and live event streaming.

High-Performance Sensor and Image Processor

At the heart of the Explore Lite is a high-performance 1-inch 9MP CMOS sensor paired with an advanced image processor, delivering ultra-high-definition footage with impeccable detail and clarity. This combination ensures smooth performance in dynamic environments, making it ideal for both live events and virtual reality production.

AI Auto Focus

Experience precise and seamless focusing with AI Auto Focus and Phase Detection Auto Focus (PDAF). This cutting-edge feature ensures that your subjects remain in sharp focus, even during fast-moving scenes, guaranteeing professional-quality results every time.

Versatile Output Options

The Explore Lite supports a range of output methods, including 4K60p resolution via NDI®HX and HDMI, allowing you to choose the best format for your production needs. This versatility ensures seamless integration into any workflow, whether you’re streaming live or recording in-studio.

Robust Audio Capabilities

For superior audio performance, the Explore Lite includes 3.5mm line-in and Mini XLR with Phantom power, ensuring compatibility with a wide range of professional microphones and audio equipment for crystal-clear sound.

Native AI-Based Auto-Tracking

With built-in AI-based auto-tracking, the Explore Lite automatically follows subjects, capturing every key moment with precision and ease. This feature is perfect for dynamic environments where continuous focus on moving subjects is critical.

Convenient Recording and Backup

Dual MicroSD card slots allow for local recording and firmware upgrades, providing instant backup in case of network issues. This ensures smooth, uninterrupted production and quick access to recorded footage when needed.

The Telycam Explore Lite combines advanced imaging technologies with user-friendly features, making it the perfect choice for professionals who need high-quality performance, flexibility, and reliability.

“NDI® is a registered trademark of Vizrt Group”

KEY FEATURES

• Sony 1″ 9MP CMOS Sensor
• PDAF(Ultra fast Phase Detection Auto Focus)
• 20x Optical Zoom
• Up to UHD 4K60 Video Resolution
• NDI|HX2, HDMI, 3G-SDI Connectivity
• Mini XLR with Phantom Power
• FreeD Support, compatible with Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine and VSet3D
• Dual Tally Lights
• AI Auto Tracking
• MicroSD Card Slots

TECHNICAL SPECIFICATIONS

Model	TLC-900-IP-20-4K(NDI)-AB
Sensor	1 inch, 9MP UHD CMOS sensor
Zoom	20X optical zoom
Lens	f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle	71°(Wide)~4.05°(Tele)
Vertical Viewing Angle	39.6°~2.2°
Diagonal Viewing Angle	78.5°~4.6°
Minimum Working Distance	Wide: 15cm; Tele: 150cm
S/N Ratio	≥50dB
Noise Reduction	2D&3D
Minimum lux	0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance	Auto/Manual/ATW/Push/Indoor/ Outdoor/Color Temperature
Exposure	Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker	OFF, 50Hz, 60Hz
Image Flip/Mirroring	Supported
Focus/Iris/Electronic-shutter	Auto/Manual
Gamma	Supported
Backlight Compensation	Supported
Video Format
3G-SDI	1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
HDMI2.0	3840*2160 P60/50/30/25/29.97/24/23.98; 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
NDI®HX	Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60; Sub Stream: 640*360P15~30
USB Type-C	NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30 YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30 MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60 H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
IP Streaming
Video Encoding	H.264/H.265
Bitrate Control	Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range	1M~120Mbps
Network Port Speed	1000M
Protocol	NDI®HX, SRT, HTTP, RTSP, RTMP, ONVIF,SSDP,RTP, Multicast, NTP, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, FreeD
Pan/Tilt Movement
Preset	Remote controller: 10; Serial port: 256; Accuracy: 0.1°
Pan Rotation Angle	-170°~+170°
Tilt Rotation Angle	-90°~+90°
Pan Rotation Speed	0.1°~80°/s
Tilt Rotation Speed	0.1°~60°/s

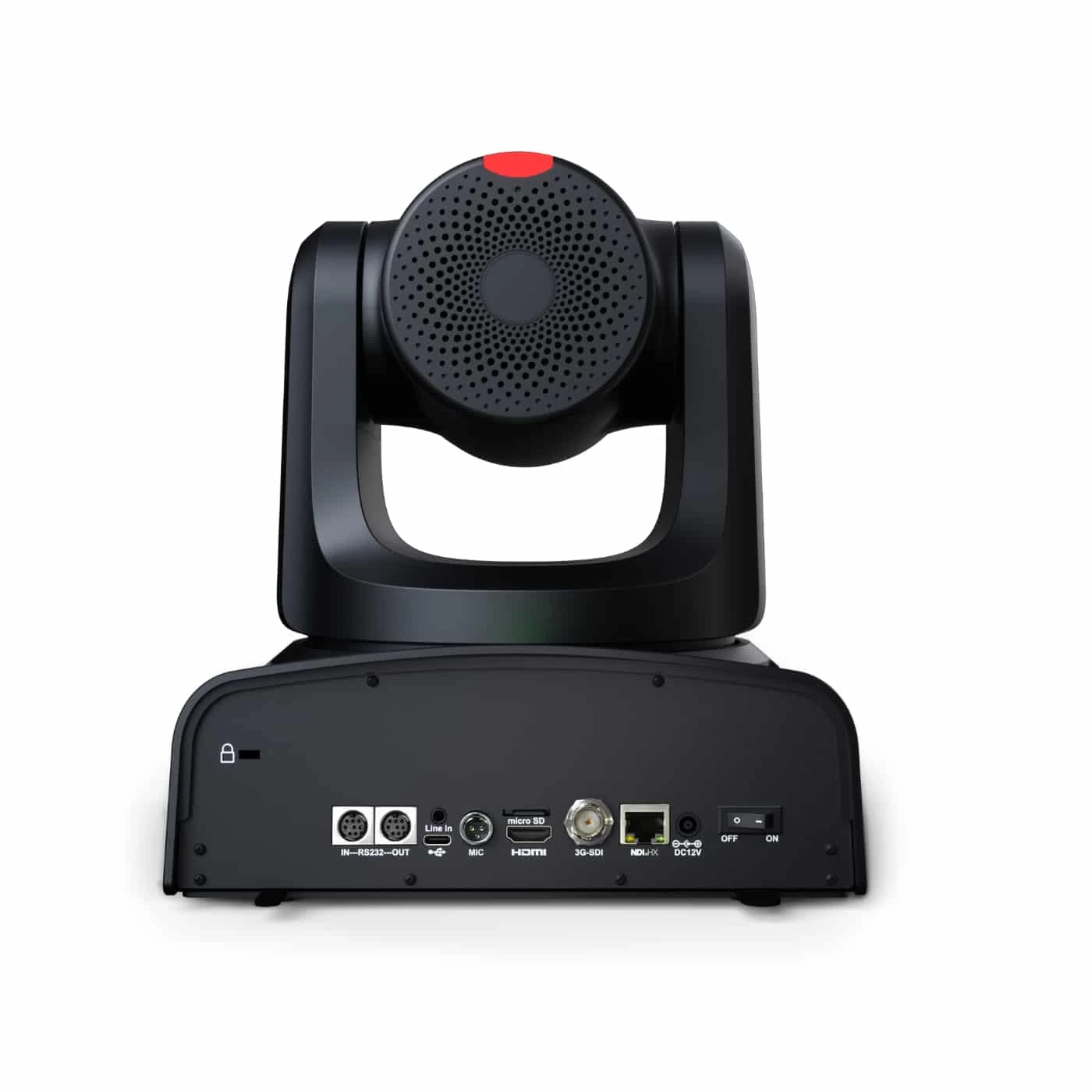

I/O Interface
Control Port	RS232, RS485, RS422, RJ45, USB, NDI®HX
Video Port	NDI®HX, HDMI 2.0, 3G-SDI, USB Type-C
Audio Port	Min XLR(with phantom power), stereo 3.5mm line in
Tally	Supported
POE++	Supported
Daisy Chain	Supported
General
Input Voltage	DC12V, POE++(IEEE802.3bt)
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Dimension(L×W×H)	232.5mm×264mm×269mm
Net Weight	4.6kg

INCLUDED BY DEFAULT

• Telycam Explore Lite 1-Inch Sensor PTZ Camera 20x Optical Zoom (Black)
• AC Adapter
• IR Remote Controller
