The IStream One-U-SDI: A Versatile And Compact VMix 1U Rackmount NUC For SDI And NDI Production

The iStream One-USDI: A Versatile and Compact vMix 1U Rackmount NUC for SDI and NDI Production

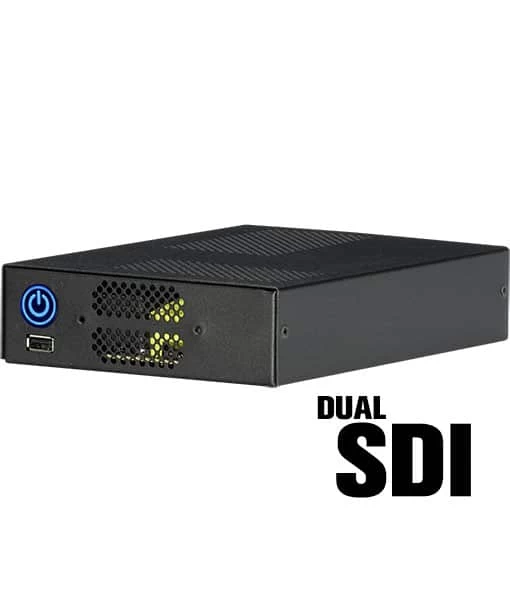

The iStream One-U-SDI represents the pinnacle of innovation in pocket-size NDI and SDI-based video production and switching. This powerful 1U Rackmount NUC is engineered with an Intel i7 processor and an Intel Iris Xe GPU, ensuring top-level performance for demanding live production scenarios.

A key enhancement in the iStream One-U-SDI is its built-in M.2 card, which provides 3G-SDI connections. This feature allows for simultaneous capture and playback in all formats up to 1080p60, making it an ideal solution for high-end video production that requires precision and reliability in handling high-definition content.

The iStream One-USDI offers a 2.5Gb LAN port, ensuring rapid and uninterrupted data transfer, essential for real-time video processing and streaming.

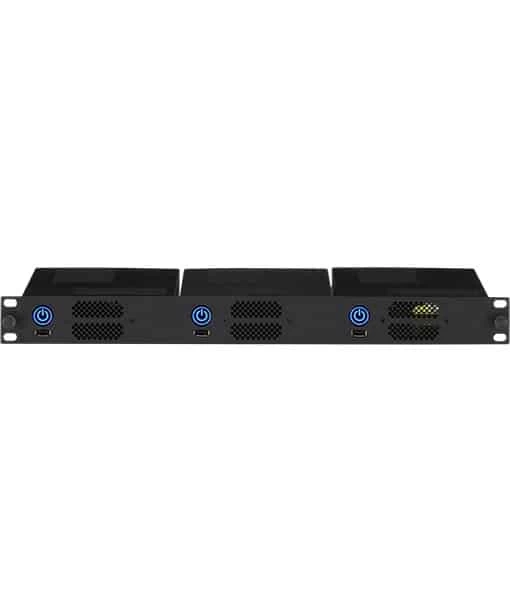

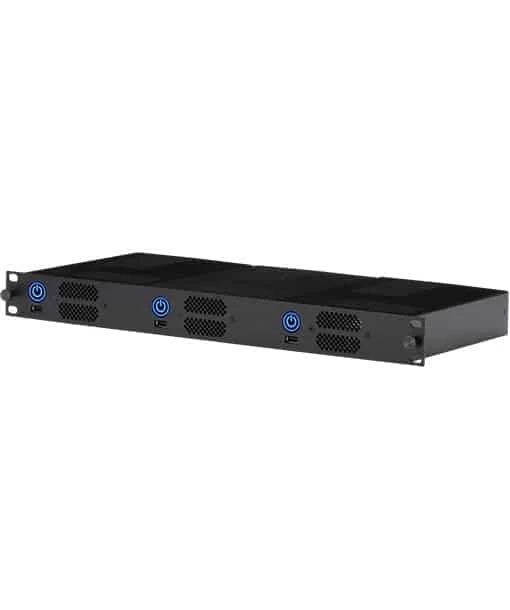

The device also retains the hallmark compact and flexible design of the iStream series. It’s ideally suited for space-sensitive installations and offers versatile mounting options, including the ability to integrate with a Rack Mount Panel, accommodating up to three units for larger installations.

Equipped with vMix HD, the iStream One-U-SDI provides a comprehensive suite of tools for live mixing, recording, and streaming. This makes it a valuable asset in broadcast studios, live event production, and other professional video production settings where high-definition capture, streaming capabilities, and space efficiency are paramount.

In summary, the iStream One-U-SDI stands out as a state-of-the-art solution in the realm of modern video production technology, combining advanced features like 3G-SDI connections with the versatility and high-speed connectivity required for professional video production environments.



KEY FEATURES

• Pocket-Size 1U rackmount NUC
• 16GB DDR4 Memory
• Lan Port (2.5Gb/s)
• 2x 3G-SDI for simultaneous capture and playback up to 1080p60
• Includes vMix HD Perpetual License
• Intel Iris XE GPU with 2 HDMI outputs
• Intel Core i7 Processor (Intel i7-1360P 3.7GHz 12C/16T)
• Integrated 500GB M.2 NVmE SSD
• NDI support
• Optional Rackmount Panel Set

SPECIFICATIONS

Processing

Switching Type	Software
Processing Resolution	1080p at 60

Input

Video Inputs	NDI, SRT, IP
Input Video Format	4K
Dual 3G-SDI In/Out	Blackmagic Decklink SDI Micro M.2

Output

Video Outputs	2 x HDMI (HDMI 2.1) Female
Output Video Format	HDMI / RJ45 1080p at 60 fps
Dual 3G-SDI In/Out	Blackmagic Decklink SDI Micro M.2

Connectivity

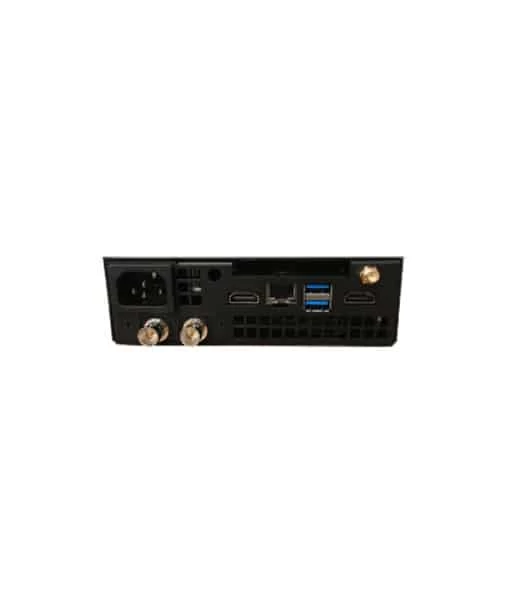

Other I/O	1x USB2.0 Front 1x USB2.0, 1x USB3.2 (Rear) 2 x Thunderbolt 4 Ports 1 x Thunderbolt 4 1 x RJ45 LAN Output 2.5Gb/s
HDCP Support	Version 2.2

Hardware

Processor	Intel i7
CPU	1360P 3.7GHz 12C/16T
GPU	Intel Iris Xe
RAM	16GB DDR4 (64GB MAX)
Harddrive	500GB M.2 NVmE SSD

Power

Power Supply

120W 100-240VAC 60-50Hz

Environmental

Operating Temperature

0 to 40°C

General

Windows
Dimensions	146(W) x200(D) x44.4(H) mm
Weight	3.5 kg

INCLUDED BY DEFAULT

• iStream One-USDI  – Compact vMix 1U Rackmount NUC
• including vMix HD perpetual license
