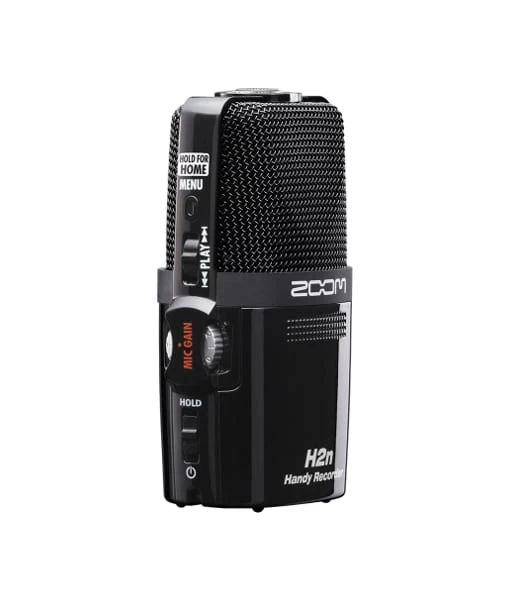

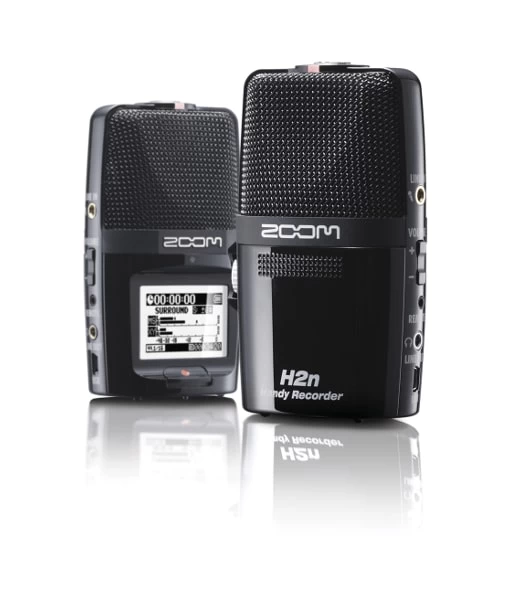

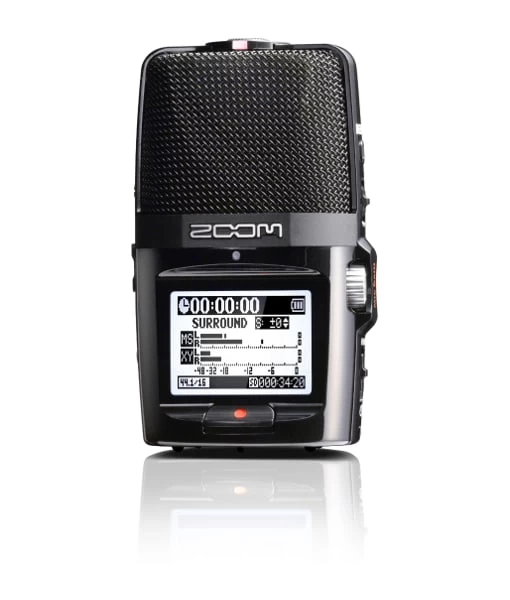

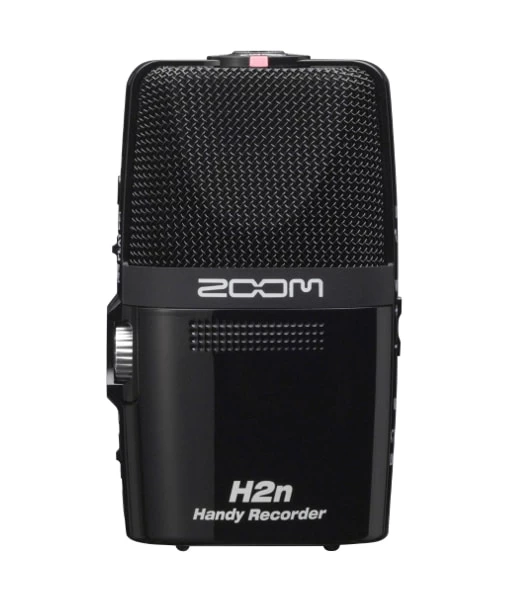

Zoom H2n Handy Audio Recorder





Zoom H2n Handy Audio Recorder

The H2n Handy Recorder is the only portable recording device to come with five built-in microphones and four different recording modes: X/Y, Mid-Side, 2-channel surround and 4-channel surround. Other advanced features include automatic gain control and onboard MS decoding, plus effects like compression, limiting and low cut filtering. You can even use the H2n as a multi-purpose USB microphone!







GENERAL
Recording media:	16MB–2GB SD cards, 4GB–32GB SDHC cards
Built-in memory:	Up to 1 minute in 96kbps MP3 format (Recording overwrites any previous recording in memory)
Mic arrangements:	90˚ X/Y stereo, MS stereo with adjustable side mic level
Recording modes:	MS, XY, MS+XY (2ch), MS+XY (4ch)
Microphone types:	Directional (XY, MS mid mics) Bidirectional (MS side mic)
Maximum sound pressure input:	120 dB spl (directional) 122 dB spl (bi-directional)
FILE FORMATS
Stereo uncompressed PCM:	44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF)
Compressed MP3 (recording):	44.1kHz, 48kHz 56 /64/80/96/112/128/160/192/ 224/256/320kbps (Not compatible with MS-RAW recording)
Compressed MP3 (playback):	44.1kHz, 48kHz 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps
4ch uncompressed PCM:	44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) (Two stereo files for each recording)
DIGITAL PROCESSING
A/D conversion:	24-bit 128× oversampling
D/A conversion:	24-bit 128× oversampling
Signal processing:	32-bit
Recording time (2GB card):	3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3)
ADDITIONAL FEATURES
Lo cut:	80Hz high-pass filter
Comp/Limiter:	3 types of compressors and 3 types of limiters
Auto gain:	Automatic input gain adjustment (3 levels)
Pre rec:	2 seconds of pre-recording
Auto rec:	Automatic recording start/stop, continuous standby
Tuner:	Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection
Metronome:	40–250 BPM range, five tones, pre-count
Speed:	Playback speed adjustable between 50–150%
Key control:	Playback pitch adjustable ±6 semitones (Cannot be used with 96kHz files)
AB repeat:	Repeats playback between selected points in a file
File divide:	Divides a file into two
File normalize:	Maximizes file volume (Cannot be used with MP3s)
File MP3 encode:	Converts WAV files to MP3 formats at fixed bit rates
Mark:	Up to 99 marks (WAV files only)
Surround mixer:	Adjusts mix balance when playing back 4ch surround recordings
OTHER
Display graphic:	128×64 pixels backlit LCD
Input gain:	0 to +39 dB

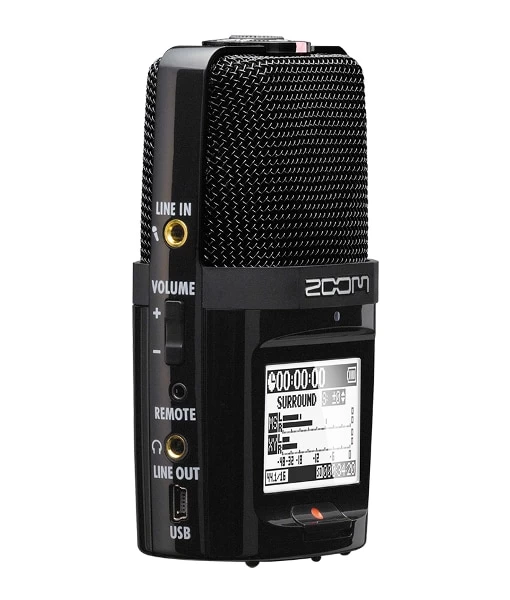

Input jack:	Line/mic stereo mini jack with plug-in power 2 kΩ impedance at input levels of 0 to –39 dBm
Output jack:	Line/headphone stereo mini jack
Rated output level:	−10 dBm (output impedance 10 kΩ or more)
Headphones:	20 mW + 20 mW (into 32 Ω load)
Built-in speaker:	400mW, 8Ω, mono
USB:	Mini-B type Card reader operation
USB 2.0 high speed:	Audio interface operation
USB 1.0 full speed:	Supports 44.1 / 48kHz sampling rates and 16-bit rate USB bus power operation supported
Power:	Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A) Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteries
Physical features:	Tripod mounting socket, strap attachment
Dimensions:	67.6mm (W) × 113.85mm (H) × 42.7mm (D)
Weight:	130 g (without batteries)



• Operation manual
• SD card (2 GB)
• 2 AA batteries
• Steinberg WaveLab LE editing software
