Zoom H6 Handy Audio Recorder





Zoom H6 Handy Audio Recorder

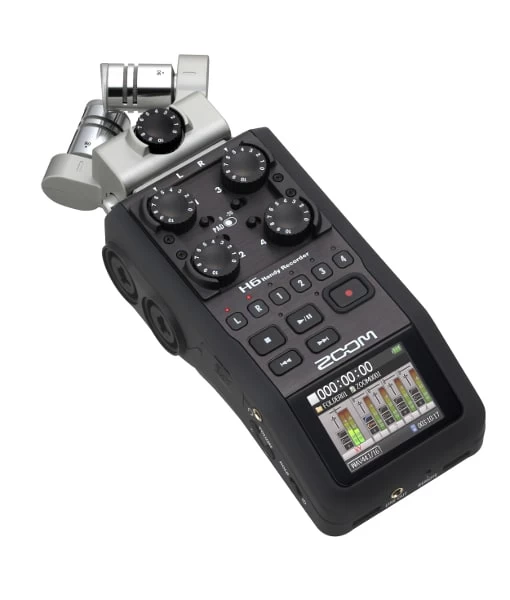

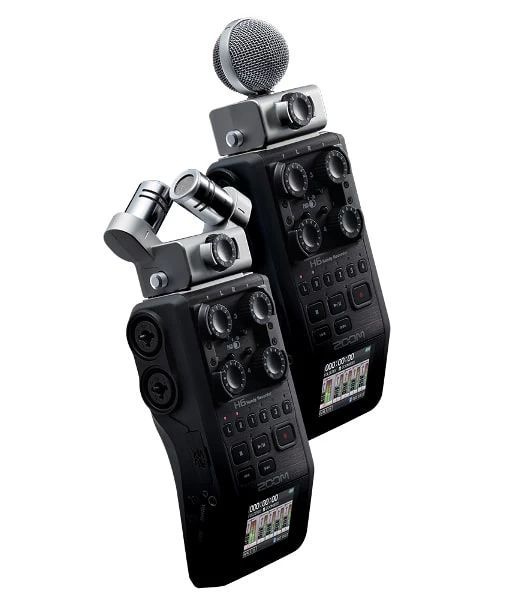

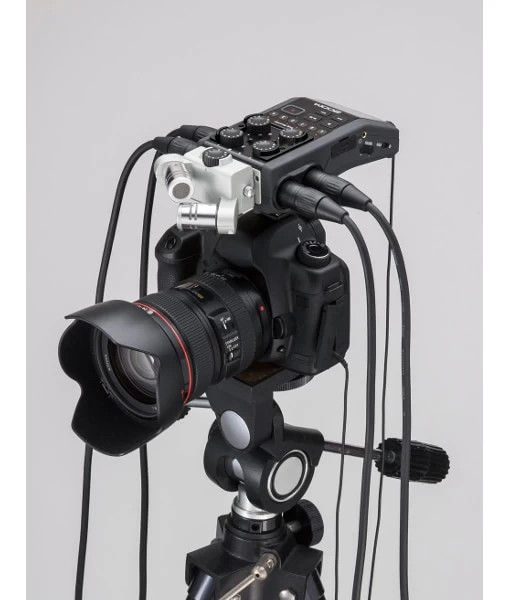

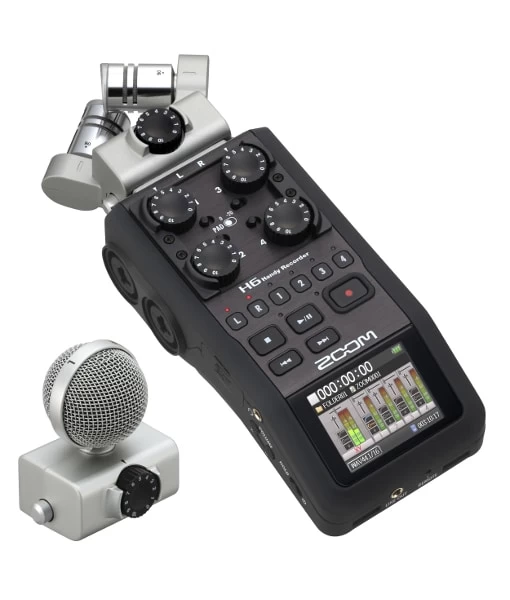

The Zoom H6 Handy Audio Recorder is most versatile portable recorder ever.with the revolutionary H6 six-track recorder, the bar is raised further still. Four interchangeable input capsules – X/Y, MS, Shotgun, and Dual XLR/TRS Combo – make the H6 the ultimate chameleon of the audio world, and its advanced preamps make it the best-sounding one too. Whatever your application – live recording, professional film/video work, live broadcast or electronic news gathering – the H6 can handle it with ease.







RECORDING MEDIA
	SD card: 16MB to 2GB SDHC card: 4GB to 32GB SDXC card: 64GB to 128GB
INPUTS
Capsules

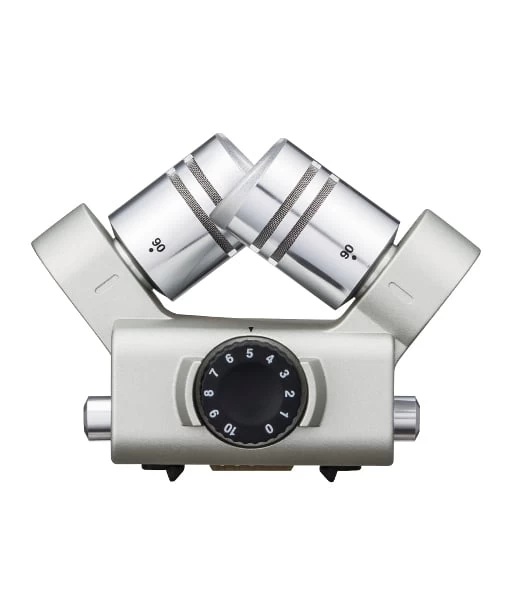

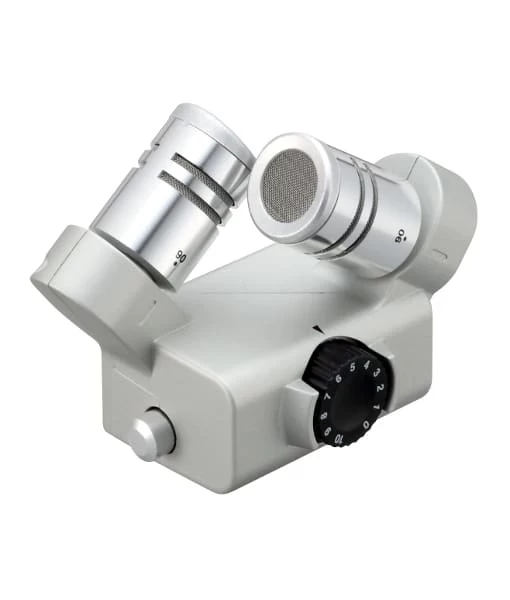

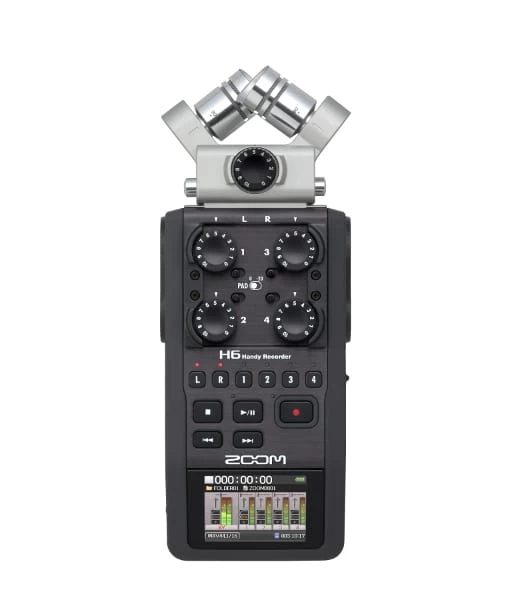

XYH-6 X/Y mic	Mic type: Unidirectional Sensitivity: -41 dB, 1 kHz at 1 Pa Input gain: -∞ to 46.5 dB Max sound pressure input: 136 dB SPL
XYH-6 MIC/LINE IN	Connector: 1/8″ stereo mini jack Input level: – ∞ to 46.5 dB Input impedance: 2 k Ω Plug-in power: 2.5V supported

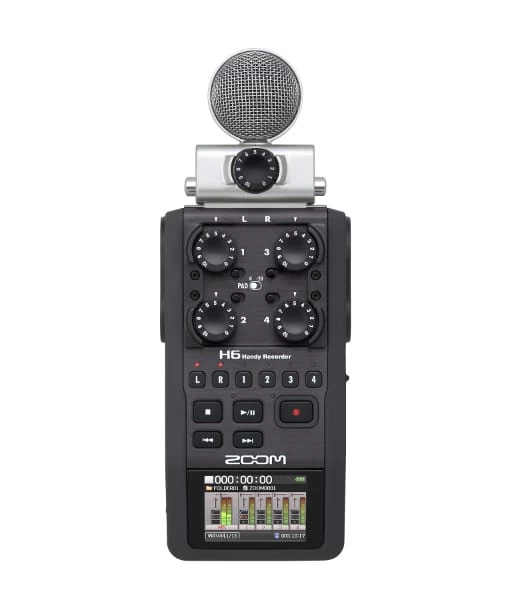

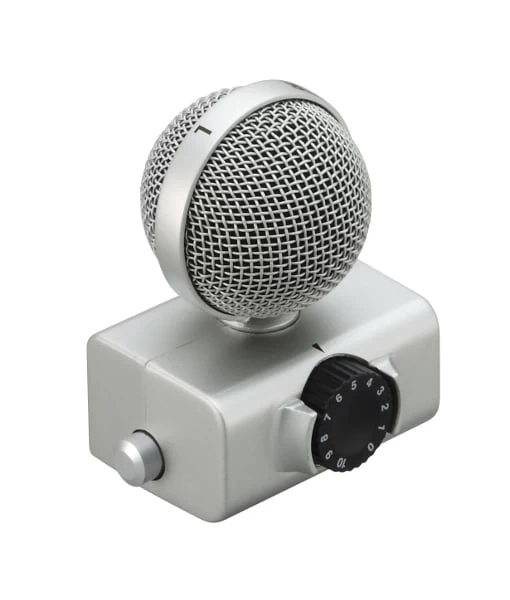

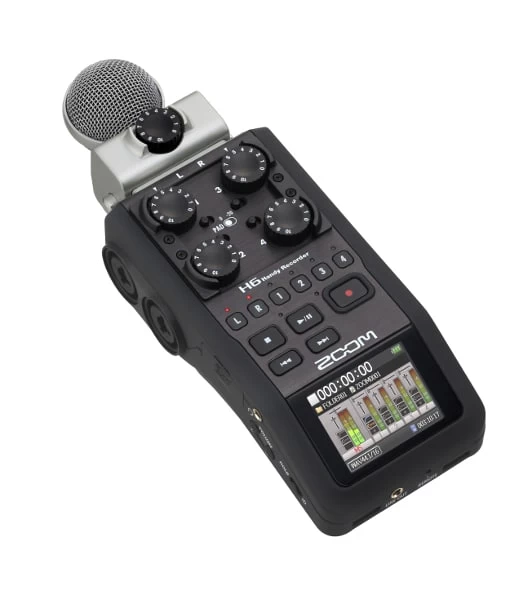

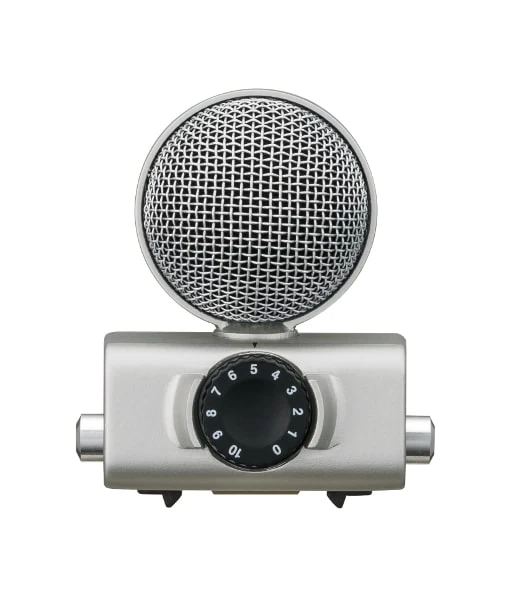

MSH-6 MS mic	Mic types: Unidirectional and bi-directional Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional) -39 dB, 1 kHz at 1 Pa (bi-directional) Input gain: -∞ to 42.5 dB Max sound pressure input: 120 dB SPL (unidirectional) 122 dB SPL (bi-directional)
Shotgun mic (SGH-6)	Mic Type: Unidirectional (mic unit x3) Polar Pattern: Super-cardioid Sensitivity: –39 dB, 1 kHz at 1 Pa (each mic unit) Input Gain: –∞ to 50 dB Maximum Sound Pressure Input: 122 dB SPL
INPUTS 1 to 4

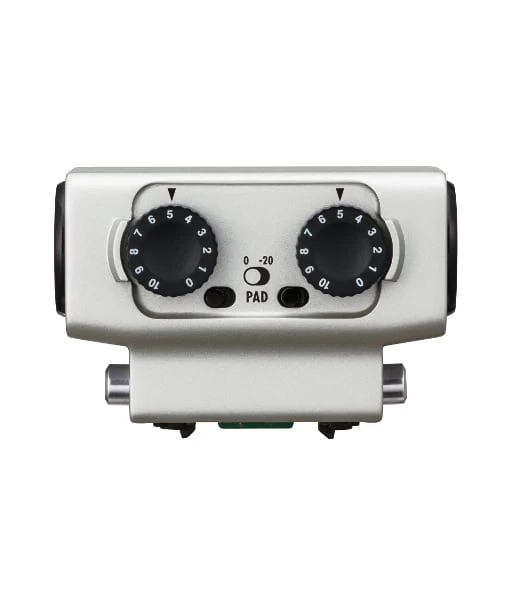

	MicConnectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot) MicInput gain: (PAD OFF) -∞ to 55.5 dB MicInput gain: (PAD ON) -∞ to 35.5 dB MicInput impedance: 1.8kΩ or more MicMax input level: +22 dBu (PAD ON) MicPhantom power: +12V /+24V /+48V (Phantom power can be turned on/off independently for Inputs 1 – 4) MicEquivalent Input Noise (EIN): -120 dBu or less
OUTPUTS
LINE OUT	Jack type: 1/8″ stereo mini jack Rated Output Level: -10 dBu when output load impedance is 10k Ω or more
PHONE OUT	Jack type: 1/8″ stereo mini jack Output Level: 20 W +20 W into 32 Ω load
Built-in speaker	400mw 8 Ω mono speaker
RECORDING FORMATS
WAV	Sampling frequency: 44.1/48/96 kHz Bit rate: 16/24 (Mono/Stereo, BWF-compliant) Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup) (Backup recording: -12dB lower than set L/R input gain)
MP3	Sampling frequency: 44.1kHz Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps Maximum simultaneous recording tracks: 2
RECORDING TIME (WITH 2GB CARD)
	03:08:00 (44.1 kHz / 16-bit WAV)
	34:43:00 (128kbps MP3)
DISPLAY
	2.0-inch full color LCD (320 x 240 pixels)
USB
Mass Storage Class operation	Class: USB2.0 High Speed

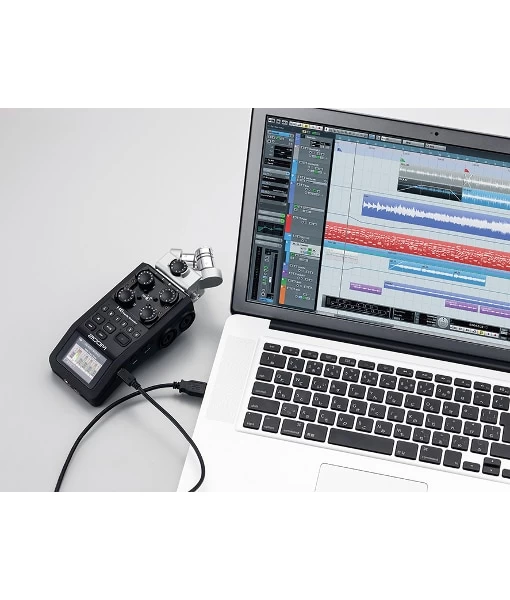

Audio Interface operation: Multi-track mode	Class: USB2.0 High Speed Inputs / Outputs: 6 / 2 Sampling frequency: 44.1/48kHz/96kHz Bit rate: 16/24 bit USB bus powered operation possible
Audio Interface operation: Stereo mode	Class: USB2.0 Full Speed Inputs / Outputs: 2 / 2 Sampling frequency: 44.1/48kHz Bit rate: 16 bit USB bus powered operation possible (iPad operation supported in stereo mode only)
POWER REQUIREMENTS
	AA size (LR6) battery x 4 Alkaline or NiMH type AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power
BATTERY LIFE
Battery life (with alkaline battery, continuous recording)	Over 20 hours
DIMENSIONS AND WEIGHT
	H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H), 85g





• Operation manual
• XYH-6 X/Y mic capsule
• MSH-6 MS mic capsule
• SD card (2GB)
• AA size (LR6) battery x 4
• Cubase LE Software
• Windscreen
• USB Cable
• Case
